Post 1460 Versalog (1) Greg's Slide Rules

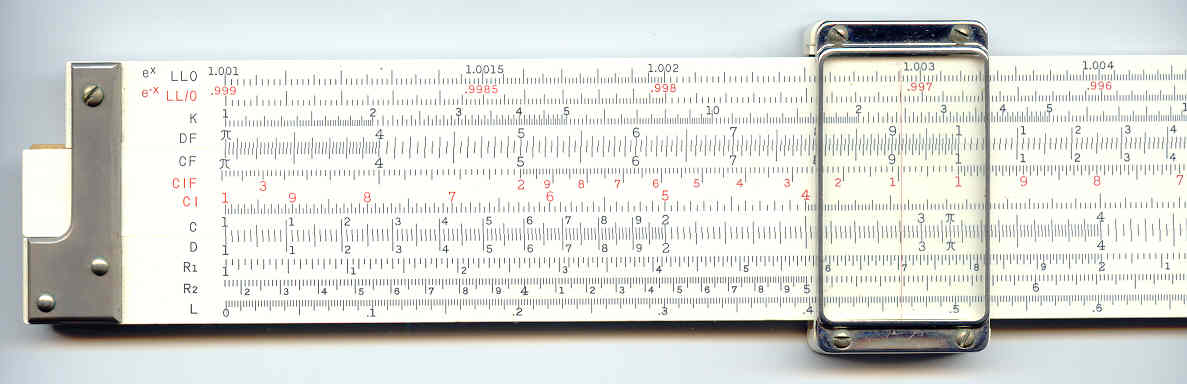

Front Left

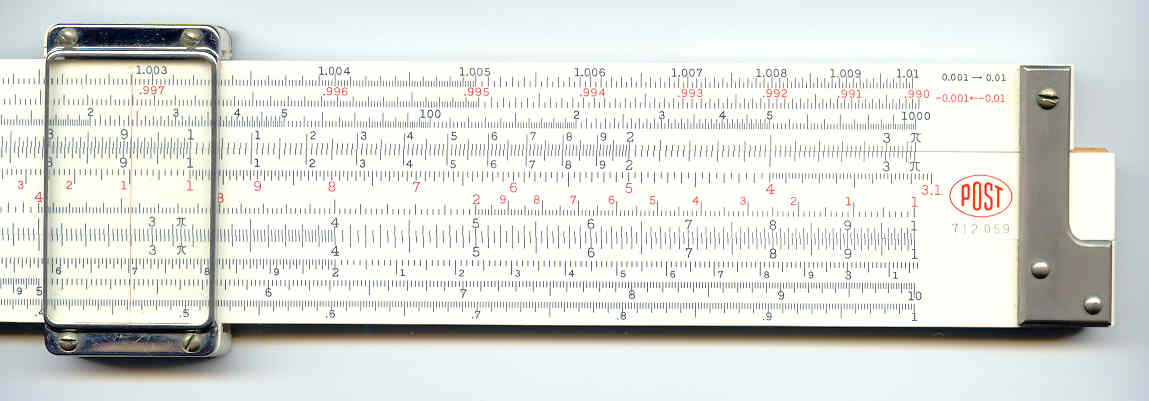

Front Right

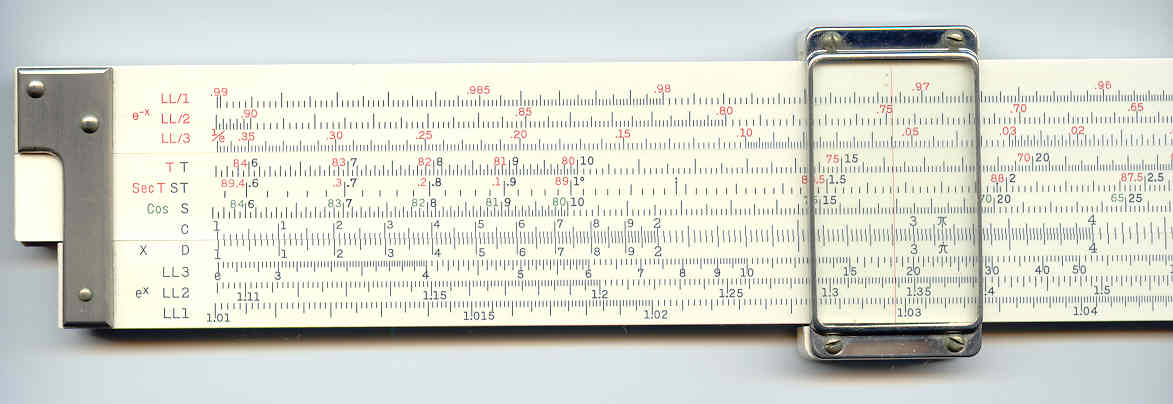

Back Left

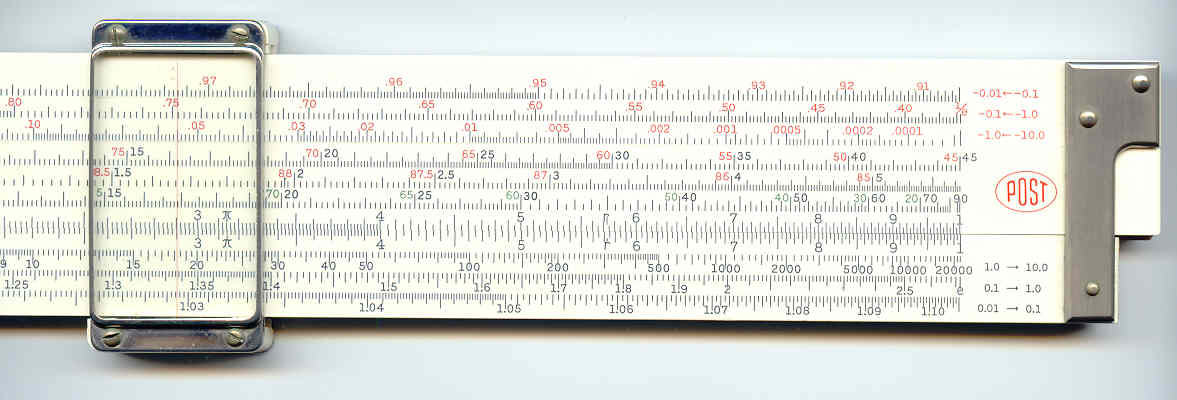

Back Right

Post 1460 Versalog (1) - Notes

  1. COS scale is green in colour - This would make this a type 1b


Further details about this Slide Rule:

Brand Post
Model 1460 Versalog
Type Duplex
Country of Manufacture Japan
Manufacturer Hemmi
Date of Manufacture Date code QF - 1966, June
Scales Front LL0, LL/0, K, DF [CF, CIF, CI, C] D, R1, R2, L
Scales Back LL/1, LL/2, LL/3 [T T, Sec T ST, Cos S, C] D, LL3, LL2, LL1
Number of Scales 23
Slide Rule Materials Bamboo/Celluloid
Cursor Materials Metal/Glass
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 32 cm
Width 4.5 cm
Condition Good, no marks or wear evident, Post logo at end of cursor is fading
Documentation No
Accessories Case

Last updated: 2002-07-08 23:05 AEST
