Dietzgen 1738M Greg's Slide Rules
 Images

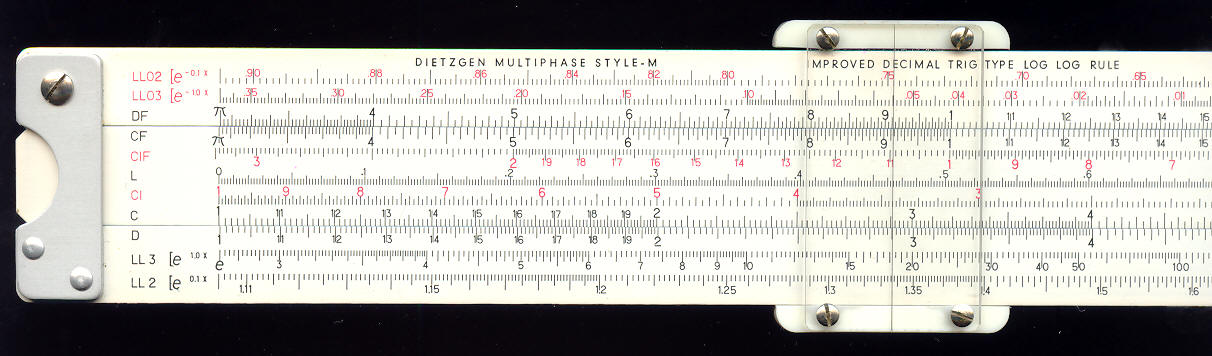

Front Left

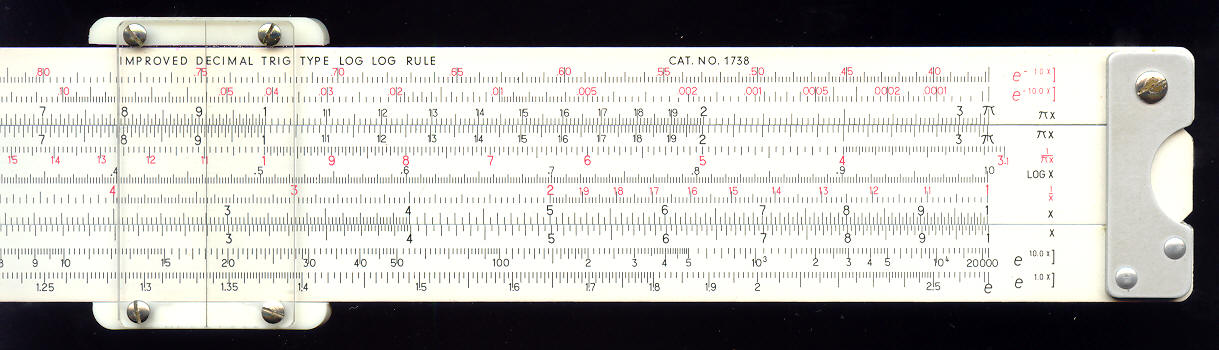

Front Right

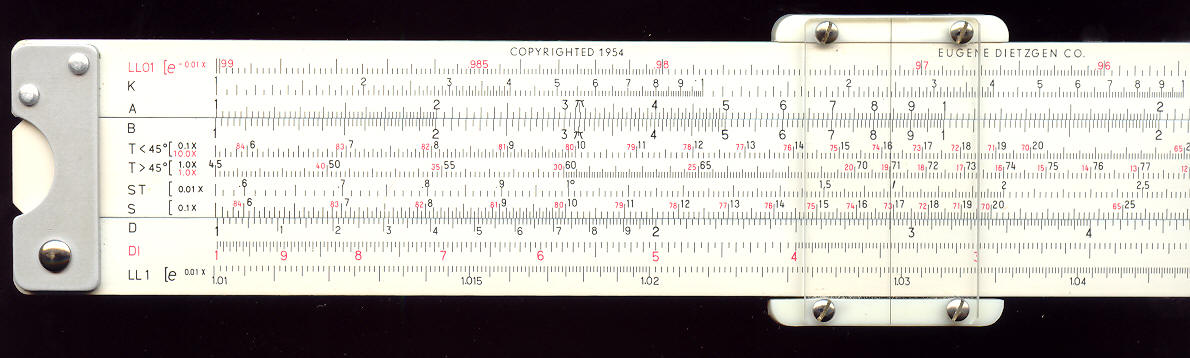

Back Left

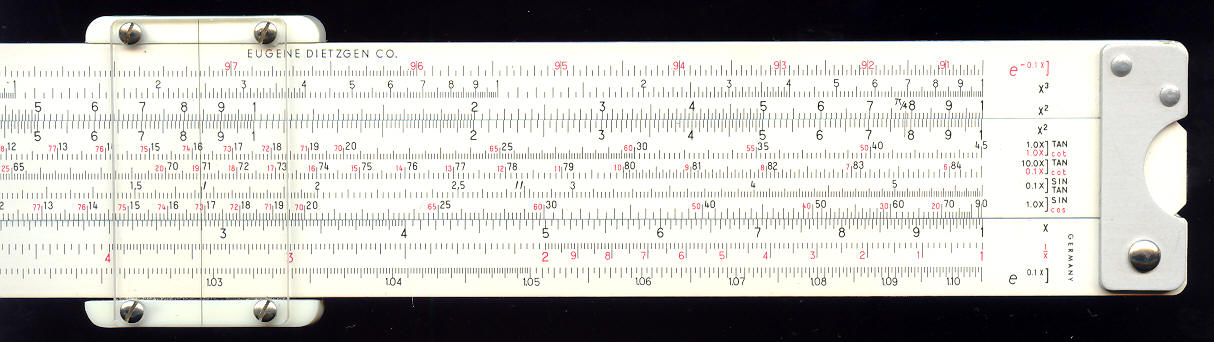

Back Right


Dietzgen 1738M - Notes



  1. One of the few aluminium rules sold by Dietzgen probably made by Ecobra


Details



Further details about this Slide Rule:

Brand Dietzgen
Model 1738 Multiphase Style-M
Type Duplex
Country of Manufacture Germany
Scales Front LL02, LL03, DF [CF, CIF, L, CI, C] D, LL3, LL2
Scales Back LL01, K, A [B, T, T, ST, S] D, DI, LL1
Number of Scales 22
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 32 cm
Width 4.3 cm
Condition Good, no marks or wear evident
Documentation No
Accessories Case


Last updated: 2002-06-23 20:05 AEST
