Aristo Scholar 0903LL Greg's Slide Rules
 Images

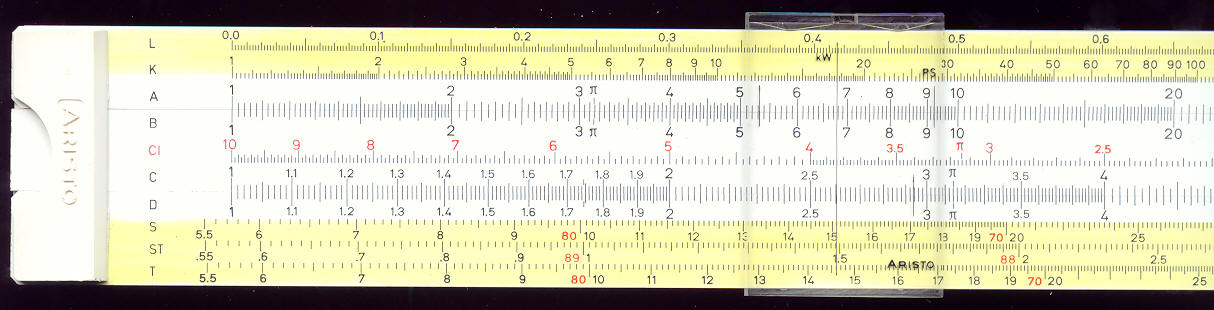

Front Left

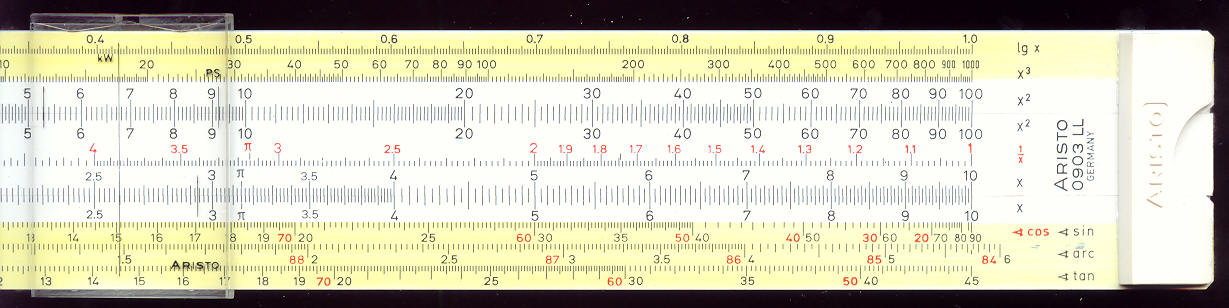

Front Right

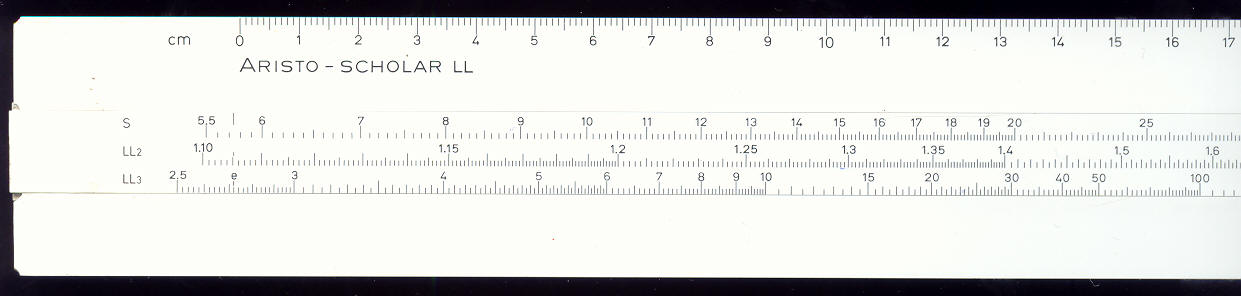

Back Left

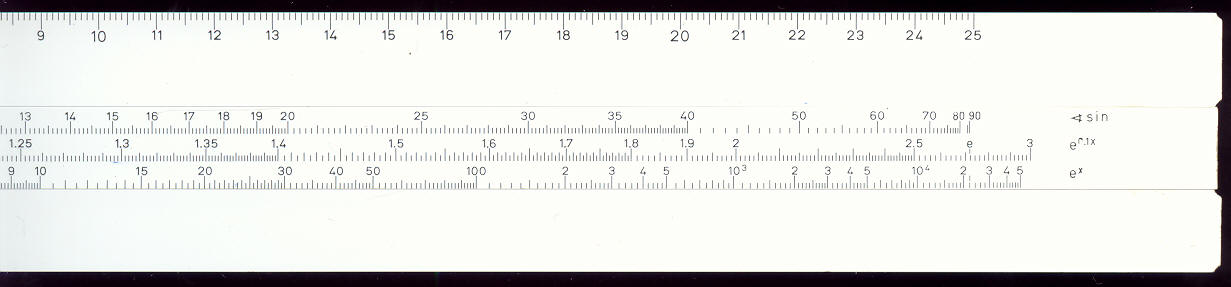

Back Right


Aristo Scholar 0903LL - Notes



  1. There appears to be a number of variations of this rule. Rod Lovett lists two other examples with different measuring scales on the reverse, this rule has Centimetres listed where the examples there, has one with both Centimetres and Inches and another with no measuring scales and an additional LL1 scale.


Details



Further details about this Slide Rule:

Brand Aristo
Model Scholar 0903LL
Country of Manufacture Germany
Scales Front L, K, A [B, CI, C] D, S, ST, T
Scales Back cm [S, LL2, LL3]
Number of Scales 13
Slide Rule Materials Plastic
Cursor Materials Plastic - Magnifying
Cursor Lines 4 Front (marks for KW & PS)
Scale Length 25 cm
Length 33 cm
Width 4.4 cm
Condition Good
Documentation None
Accessories Red and White plastic slip box


Last updated: 2002-06-24 20:55 AEST
