Pickett N500-ES Greg's Slide Rules
 Images

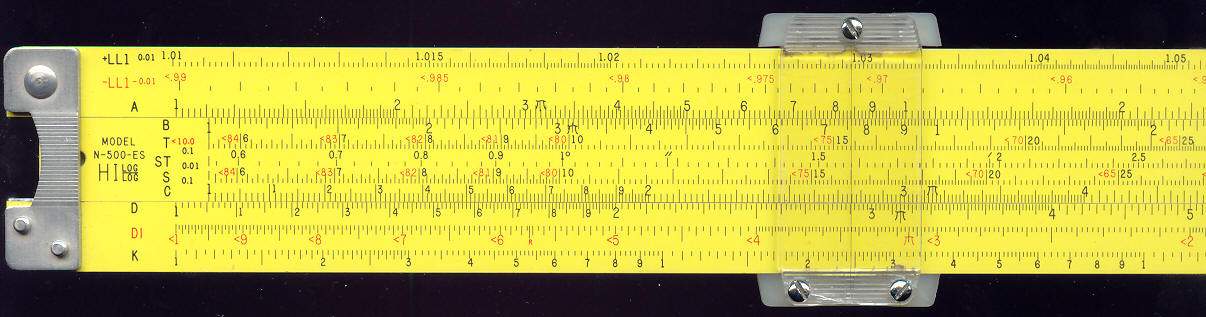

Front Left

Front Right

Back Left

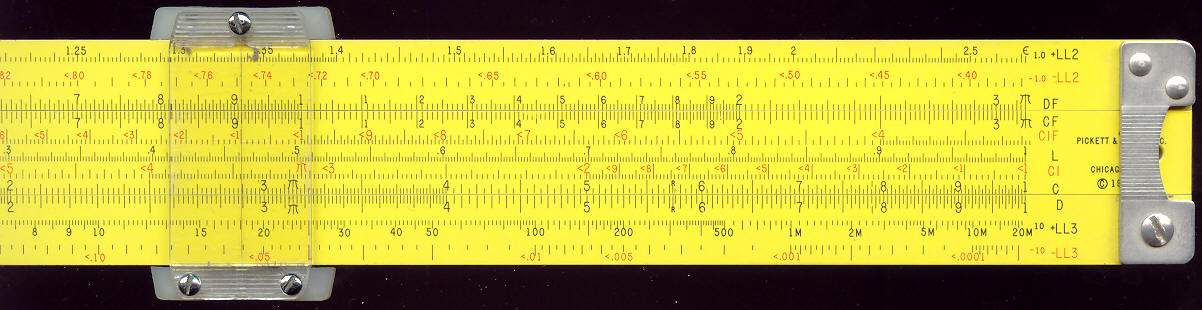

Back Right


Pickett N500-ES - Notes



  1. The log-log scales for values less than 1.0 are marked -LL1, etc, on this rule.


Details



Further details about this Slide Rule:

Brand Pickett
Model N500-ES HI LOG LOG
Country of Manufacture USA
Scales Front LL1, LL01, A [B, T, ST, S, C] D, DI, K
Scales Back LL2, LL02, DF [CF, CIF, L, CI, C] D, LL3, LL03
Number of Scales 22
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories Leather case
