Pickett 510 Business & Finance Greg's Slide Rules
 Images

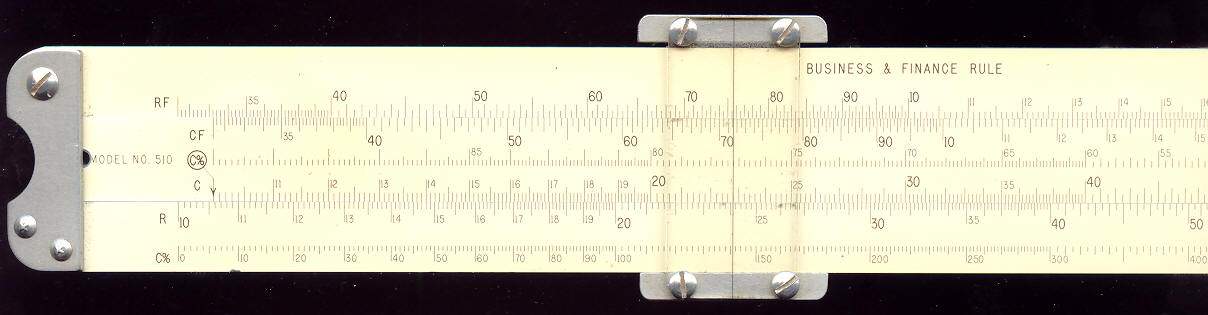

Front Left

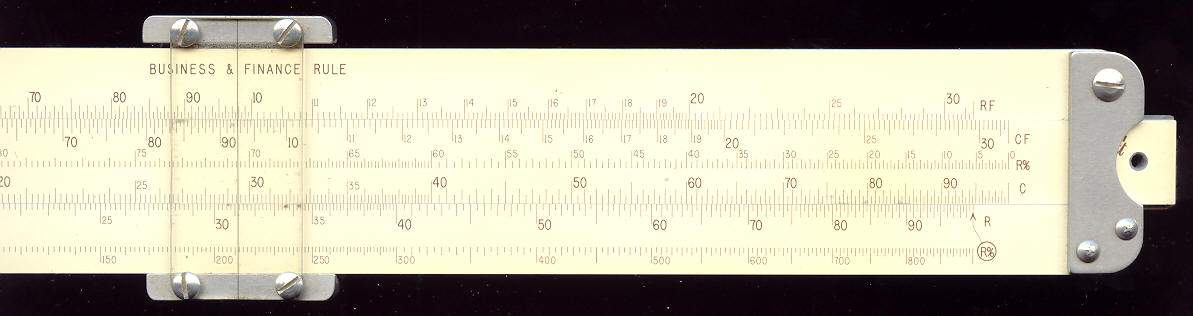

Front Right

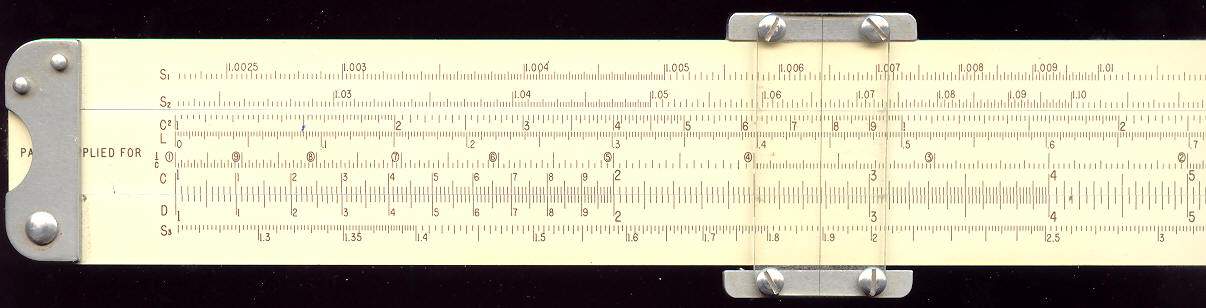

Back Left

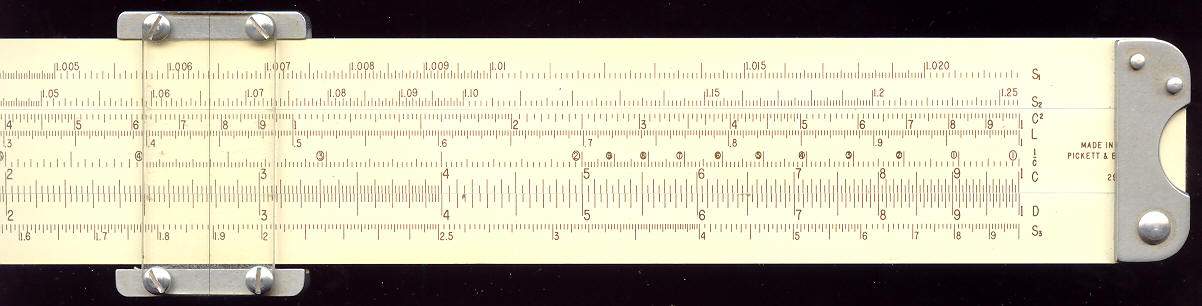

Back Right


Pickett 510 - Notes



  1. This is an old style slide rule from Pickett, note the metal and plastic cursor and the rounded metal braces at the end of the slide.
  2. This slide rule is designed for finance and business calculations.
  3. The C and CF scales are the normal C and CF scales as found on other slide rules. The R and RF are the same as the D and DF scales normally found on other slide rules.
  4. For this slide rule the C scale represents cost and the R represents retail. The C% and R% stand for cost and retail markup percent.


Details



Further details about this Slide Rule:

Brand Pickett
Model 510 Business & Finance
Country of Manufacture USA
Scales Front RF [CF, C%, C] R, C%
Scales Back S1, S2 [C2, 1/C, C] D, S3
Number of Scales 13
Slide Rule Materials Aluminium
Cursor Materials Metal/Plastic
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories Leather case


Last updated: 2002-06-29 16:05 AEST
