Lutz 252 Greg's Slide Rules
 Images

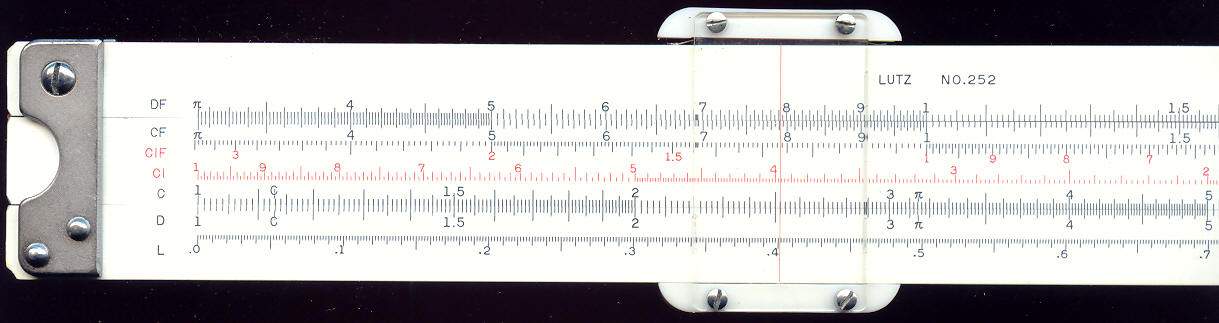

Front Left

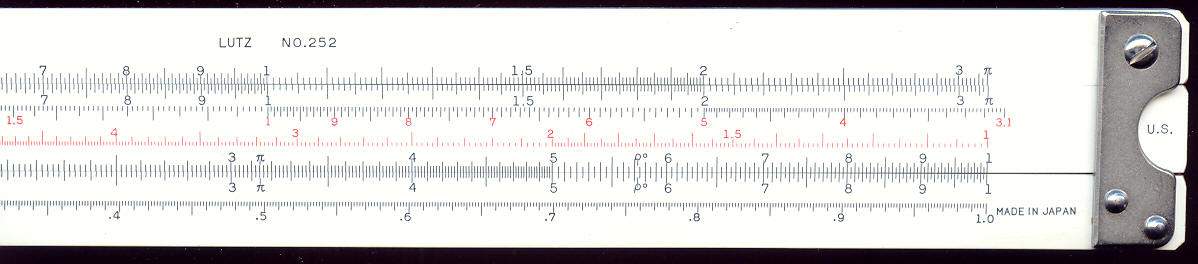

Front Right

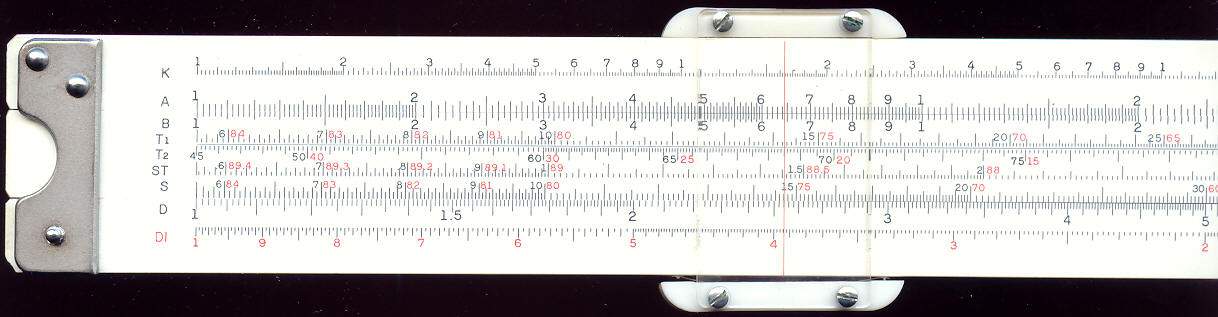

Back Left

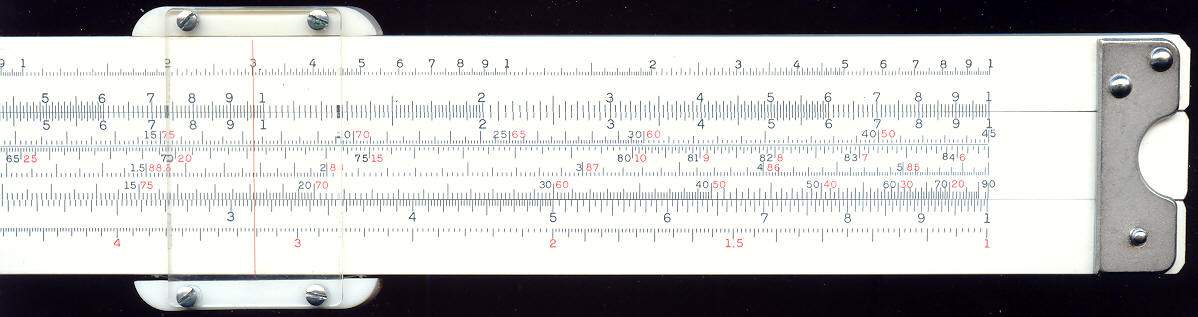

Back Right


Lutz 252 - Notes



  1. Appears identical to the Relay 252 which was made by the Relay/Ricoh group. This rule from Lutz was probably made by Relay Ricoh.


Details



Further details about this Slide Rule:

Brand Lutz
Model No. 252
Country of Manufacture Japan
Scales Front DF [CF, CIF, CI, C] D, L
Scales Back K, A [B, T1, T2, ST, S] D, DI
Number of Scales 16
Slide Rule Materials Bamboo/Celluloid
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 31.5 cm
Width 4 cm
Condition Mint in sealed plastic

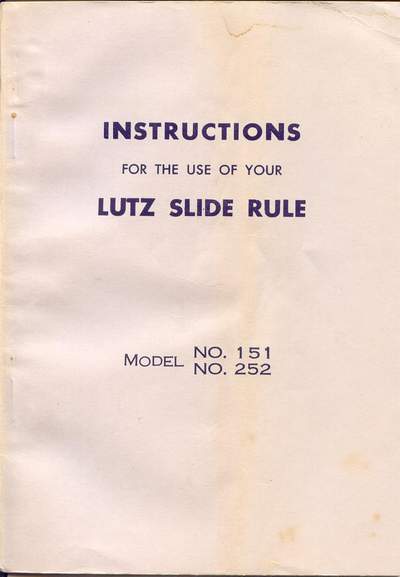

Documentation Lutz 151, 252 Instructions
Accessories
  1. Original box
  2. Leather case


Last updated: 2002-06-30 13:40 AEST
