ACU-MATH No. 150 Greg's Slide Rules
 Images

Front Left

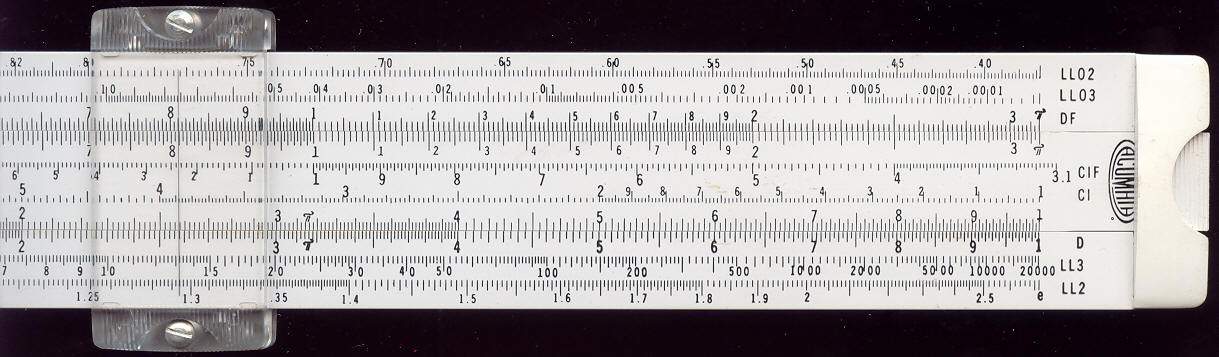

Front Right

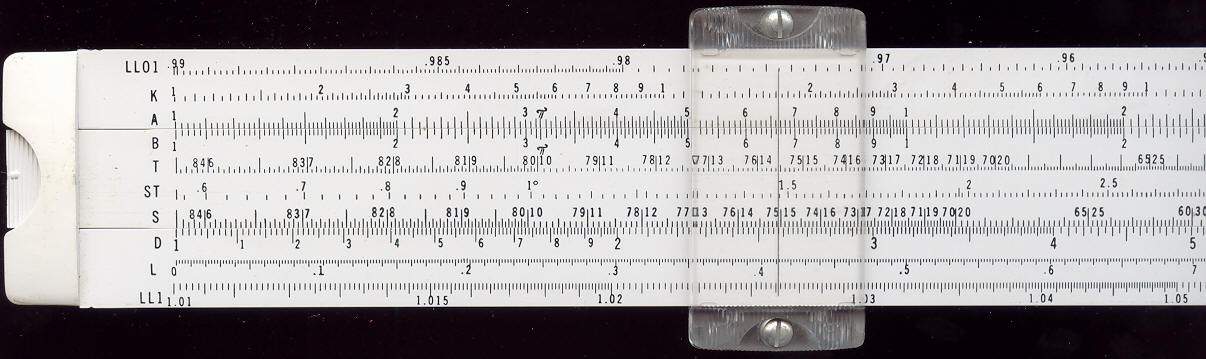

Back Left

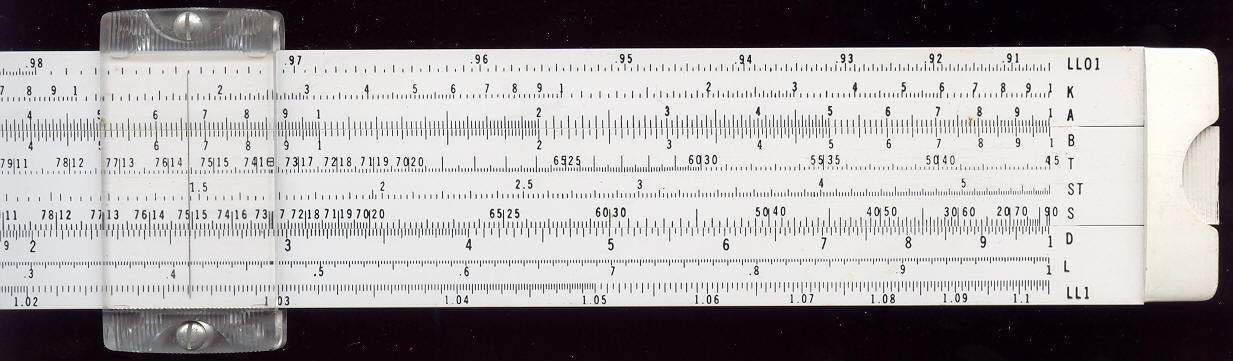

Back Right


ACU-MATH No. 150 - Notes



  1. Trig and Log Log Rule.
  2. On the front, the scale indicators for CIF and CI are displayed on the right side only.
  3. Manufactured by ACU-MATH division of Sterling Plastics who made all of the later ACU-MATH duplex rules.


Details



Further details about this Slide Rule:

Brand ACU-MATH
Model No. 150
Type Duplex
Country of Manufacture USA
Scales Front LL02, LL03, DF [CF, CIF, CI, C] D, LL3, LL2
Scales Back LL01, K, A [B, T, ST, S] D, L, LL01
Number of Scales 20
Slide Rule Materials Plastic
Cursor Materials Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.8 cm
Width 4.3 cm
Condition Good

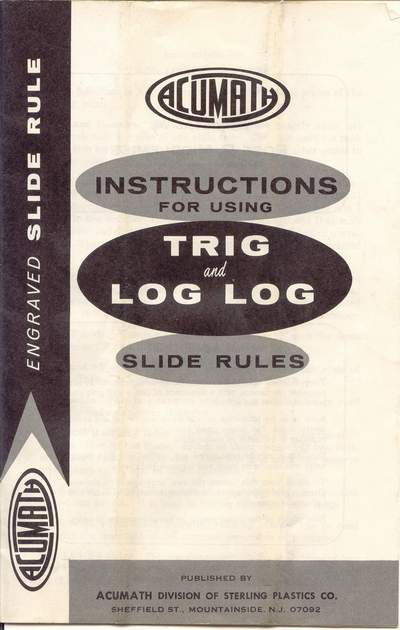

Documentation ACU-MATH No. 150
Accessories Vinyl slip case


Last updated: 2002-06-30 11:25 AEST
