Pickett Model 1000 Greg's Slide Rules
 Images

Front Left

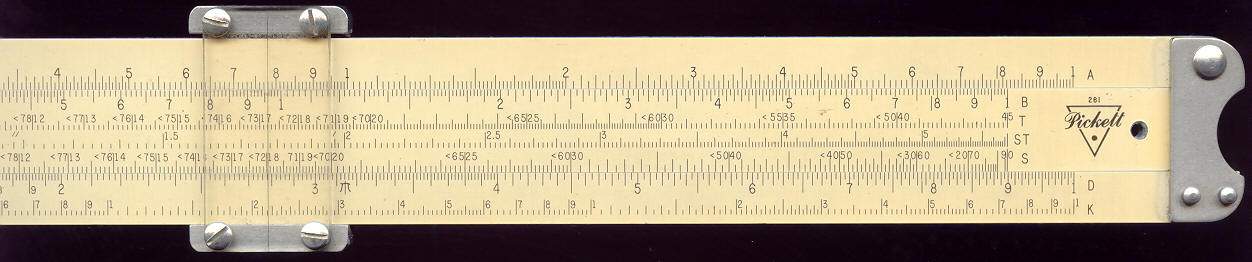

Front Right

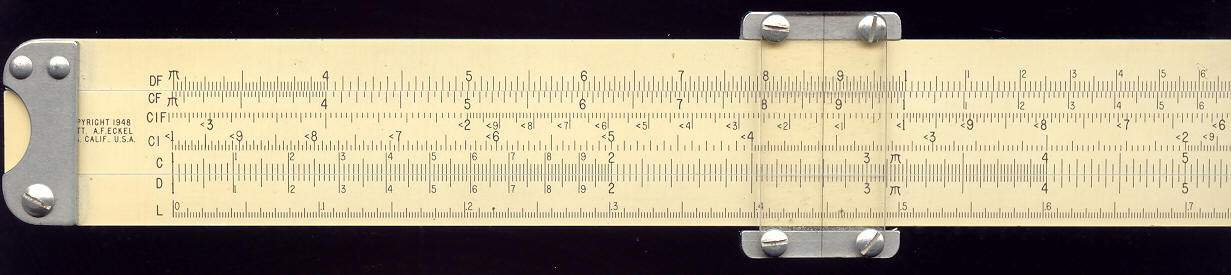

Back Left

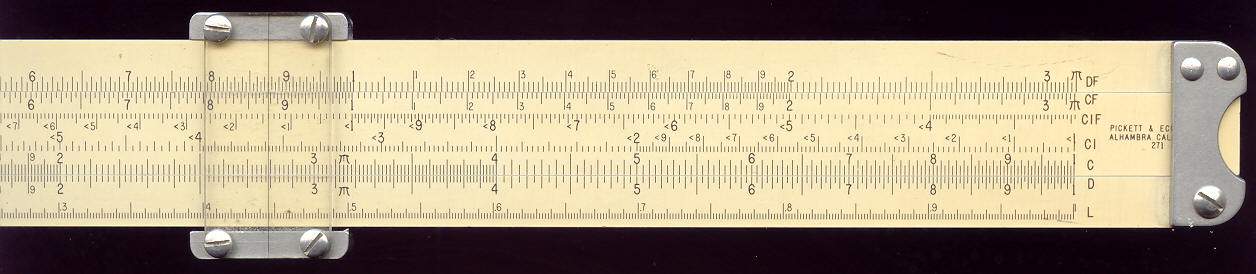

Back Right


Pickett Model 1000 - Notes



  1. This is an old style Pickett with metal cursor pieces. This was superceded after 1950 when the new cursor type was introduced which makes this rule at least 50 years old.


Details



Further details about this Slide Rule:

Brand Pickett
Model Model 1000 Ortho-Phase Duplex
Country of Manufacture USA
Scales Front A [B, T, ST, S] D, K
Scales Back DF [CF, CIF, CI, C] D, L
Number of Scales 14
Slide Rule Materials Magnesium
Cursor Materials Metal/Plastic
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 30.7 cm
Width 3.1 cm
Condition Good
Documentation None
Accessories None


Last updated: 2002-07-13 15:40 AEST
