Pickett N515-T Electronic Greg's Slide Rules
 Images

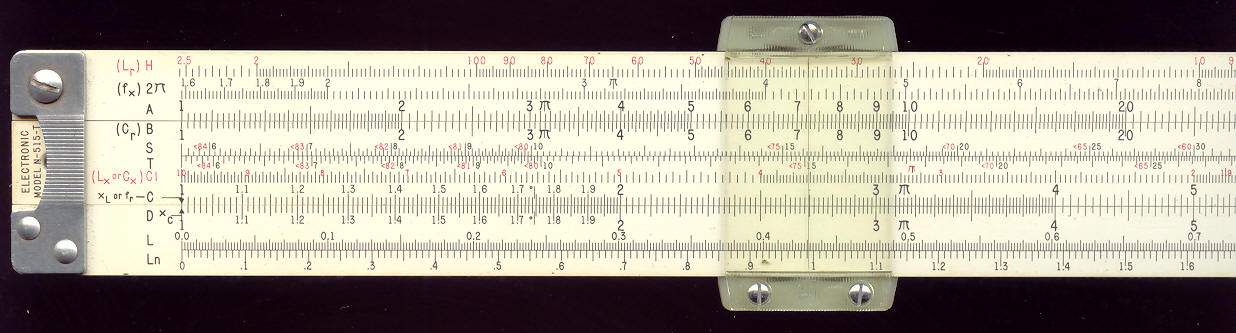

Front Left

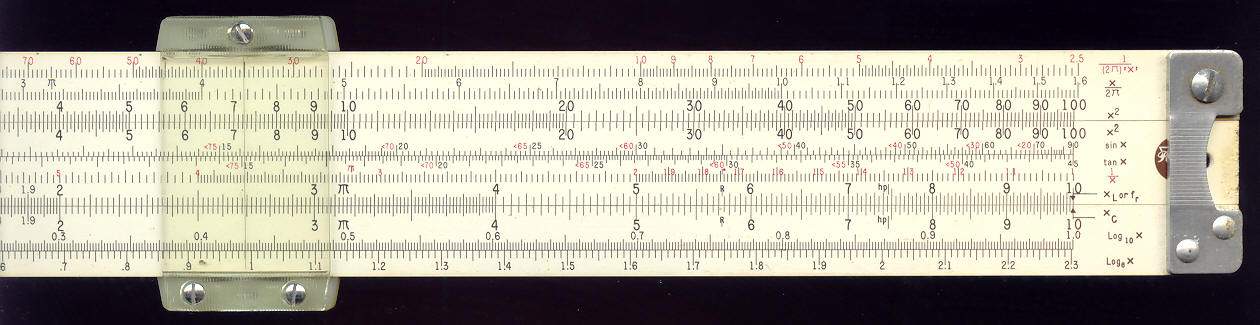

Front Right

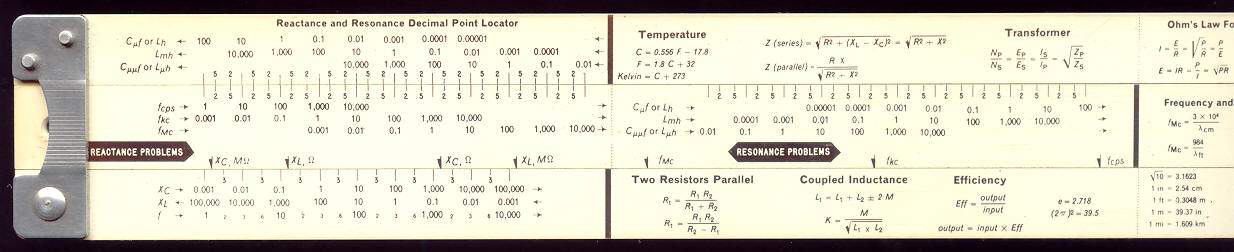

Back Left

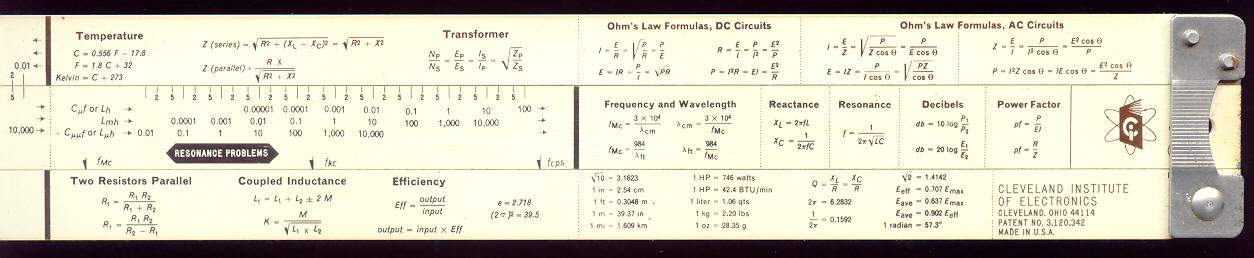

Back Right


Pickett N515-T Electronic - Notes



  1. This rule was produced by Picket for the Cleveland Institute of Electronics.
  2. Two of the scales were targeted at electronic engineers providing 1/(2px)2 and x/(2p).
  3. Curiously this rule is effectively a single sided rule yet Pickett have given it a cursor with a hairline at the front and back.


Details



Further details about this Slide Rule:

Brand Pickett
Model N515-T Electronic
Country of Manufacture USA
Scales Front (Lτ) H, (fx) 2π, A [(Cr) B, S, T, (Lx or Cx) CI, C] D, L, Ln
Scales Back Various electrical and electronic formulae
Number of Scales 11
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good, slight corrosion to metal end pieces at the right end
Documentation None
Accessories Leather case with belt loop


Last updated: 2004-08-22 23:30 AEST
