Pickett N3-T Greg's Slide Rules
 Images

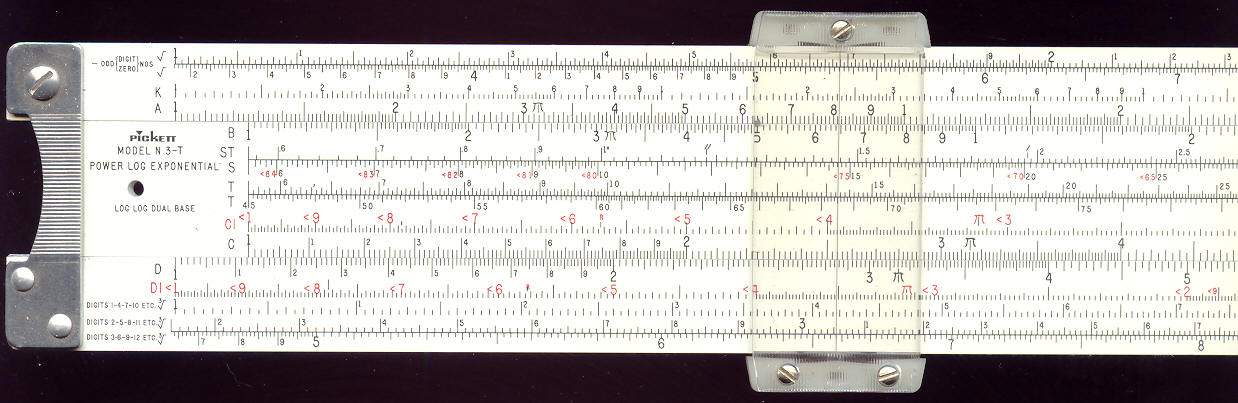

Front Left

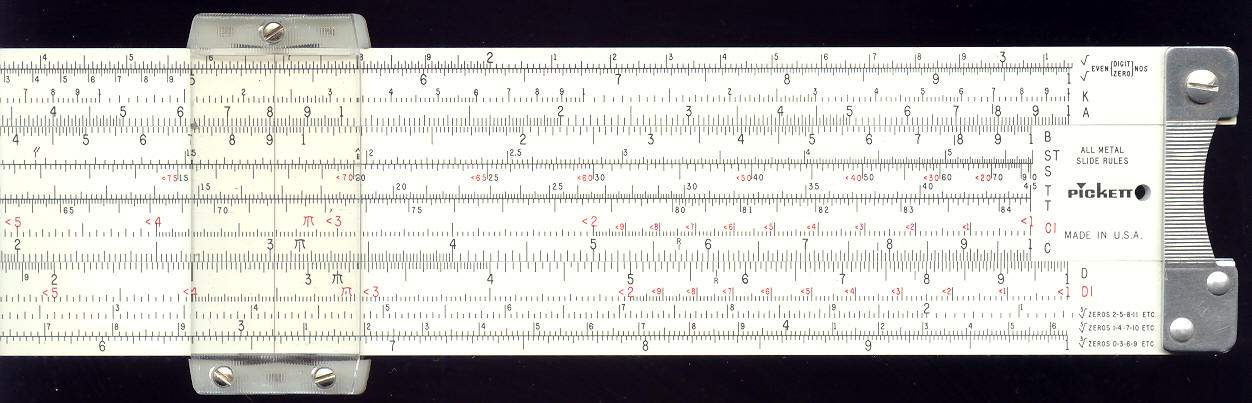

Front Right

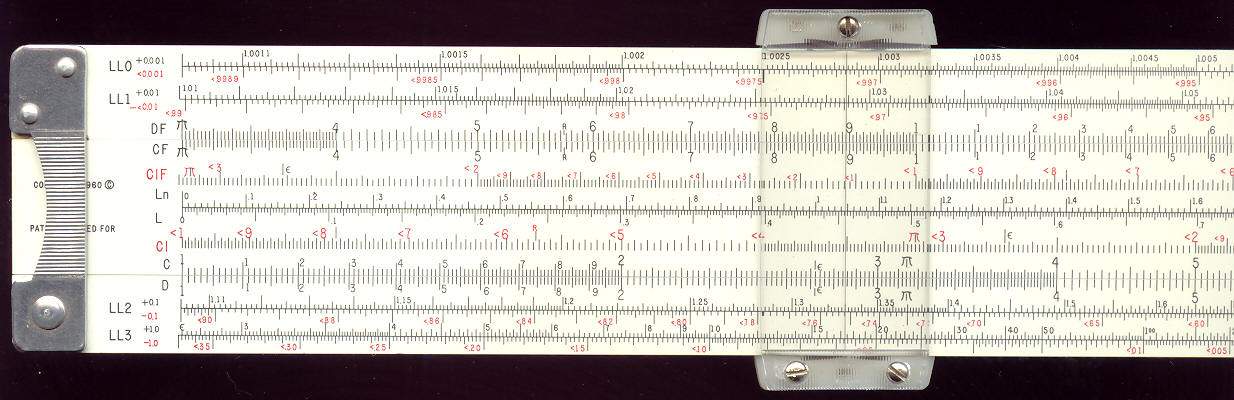

Back Left

Back Right


Pickett N3-T - Notes



  1. This rule has the same dimensions as the Pickett N4-T and the Pickett N4-ES. The differences are that the scales have been rearranged and there are less log scales on this rule.


Details



Further details about this Slide Rule:

Brand Pickett
Model N3-T Power Log Exponential, Log Log Dual Base
Country of Manufacture USA
Scales Front √1, √2, K, A [B, ST, S, T, T, CI, C] D, DI, 3√1, 3√2, 3√3
Scales Back LL0, LL00, LL1, LL01, DF [CF, CIF, Ln, L, CI, C] D, LL2, LL02, LL3, LL03
Number of Scales 32
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 5.2 cm
Condition Good
Documentation None
Accessories Leather case with belt loop


Last updated: 2004-08-22 23:30 AEST
