Pickett Model 3 Greg's Slide Rules
 Images

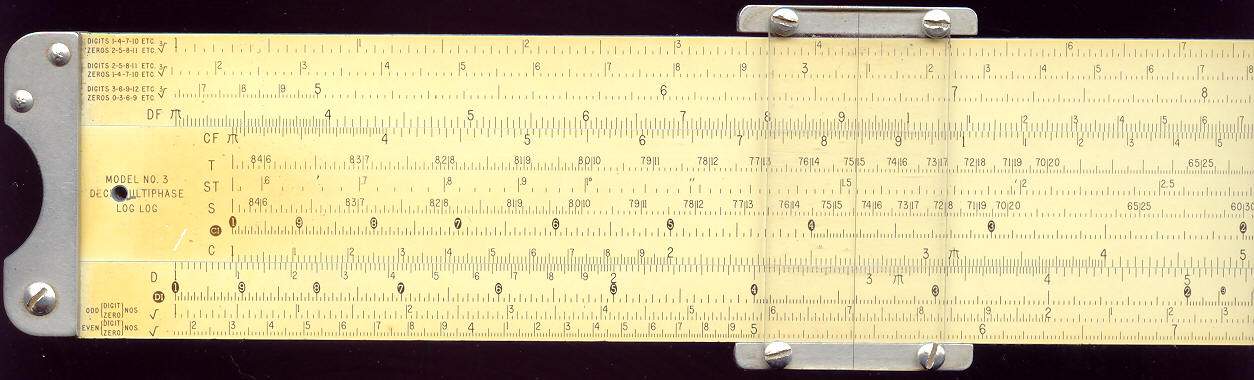

Front Left

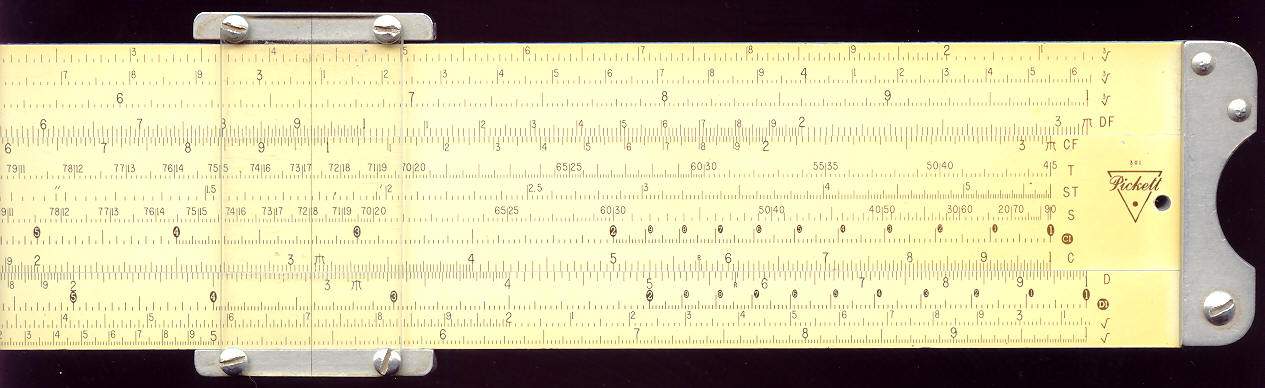

Front Right

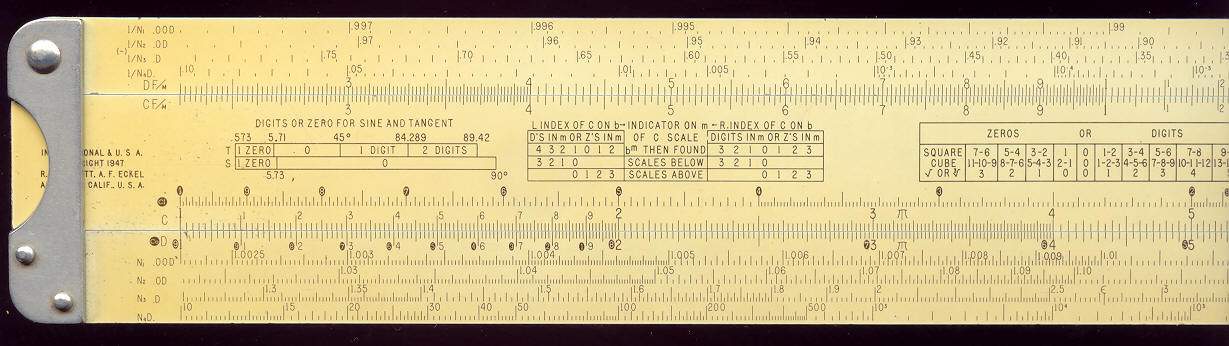

Back Left

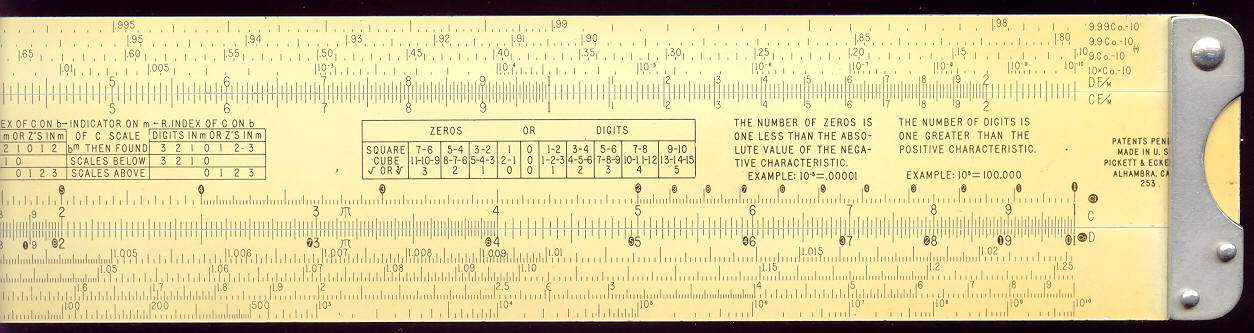

Back Right


Pickett Model 3 - Notes



  1. There appear to be two variations of this model, this one the Deci-Multiphase Log Log and the Deci Log Log Vector. The differences appear to be the scale arrangement.
  2. This is an old style Pickett with metal cursor pieces. This was superceded after 1950 when the new cursor type was introduced which makes this rule at least 50 years old.


Details



Further details about this Slide Rule:

Brand Pickett
Model Model 3 Deci-Multiphase Log Log
Country of Manufacture USA
Scales Front 3√1, 3√2, 3√3, DF [CF, T, ST, S, CI, C] D, DI, √1, √2
Scales Back 1/N1, 1/N2, 1/N3, 1/N4, DF [CF, Instructions, CI, C] D, DI, N1, N2, N3, N4
Number of Scales 28
Slide Rule Materials Magnesium
Cursor Materials Metal/Plastic
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 5.2 cm
Condition Good, some staining of the surface through use
Documentation None
Accessories Leather case


Last updated: 2004-08-22 23:30 AEST
