Pickett Model 2 (1) Greg's Slide Rules
 Images

Front Left

Front Right

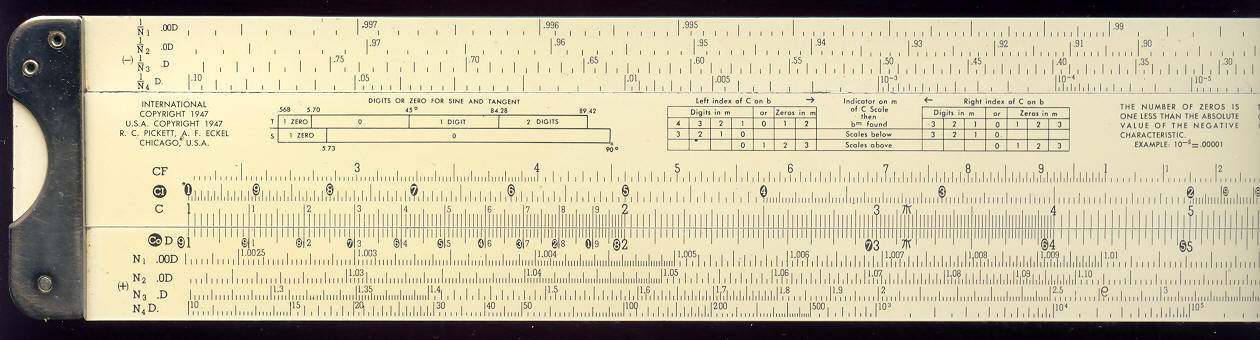

Back Left

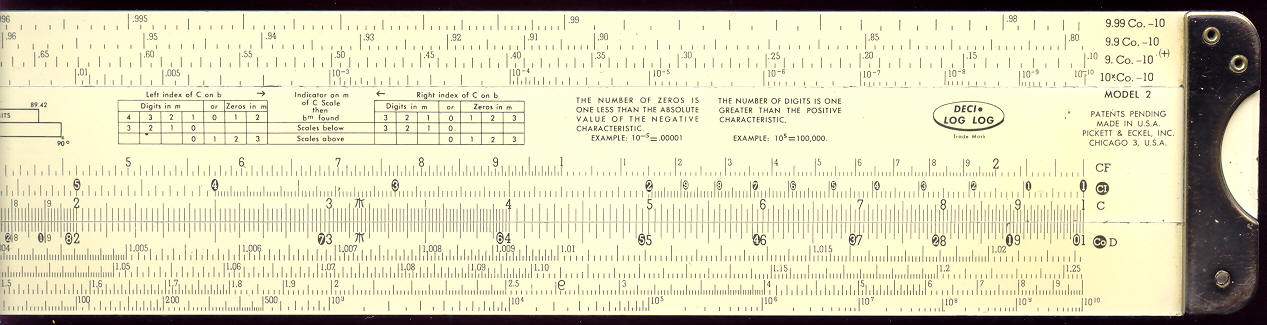

Back Right


Pickett Model 2 (1) - Notes



  1. There appear to be at least three variations of this model, this one is the Deci-Log Log. Refer to Pickett Model 2 (2) for another version of this rule.
  2. The first variations appear to be scale arrangements on the same slide rule body, the third variant appears to be constructed on an Aluminium slide rule body.
  3. This is an old style Pickett with metal cursor pieces. This was superceded around 1950 when the new cursor type was introduced which makes this rule at least 50 years old.


Details



Further details about this Slide Rule:

Brand Pickett
Model Model 2 Deci-Log Log
Country of Manufacture USA
Scales Front 3√1, 3√2, 3√3, L [T, T, ST, S, CI, C] D, √1, √2
Scales Back 1/N1, 1/N2, 1/N3, 1/N4 [Instructions, CF, CI, C] D, N1, N2, N3, N4
Number of Scales 25
Slide Rule Materials Magnesium
Cursor Materials Metal/Plastic
Cursor Lines 1 Front, 1 Rear
Scale Length 24.7 cm
Length 30.7 cm
Width 5.2 cm
Condition Good
Documentation None
Accessories Rubber case


Last updated: 2004-08-22 23:30 AEST
