Pickett N902-ES Simplex Trig Greg's Slide Rules
 Images

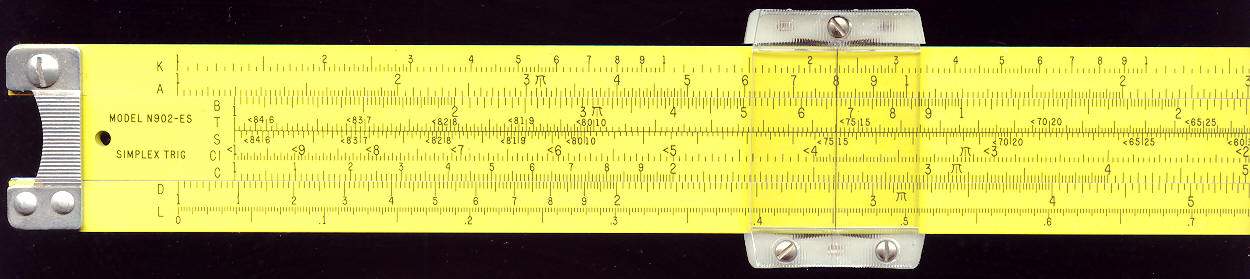

Front Left

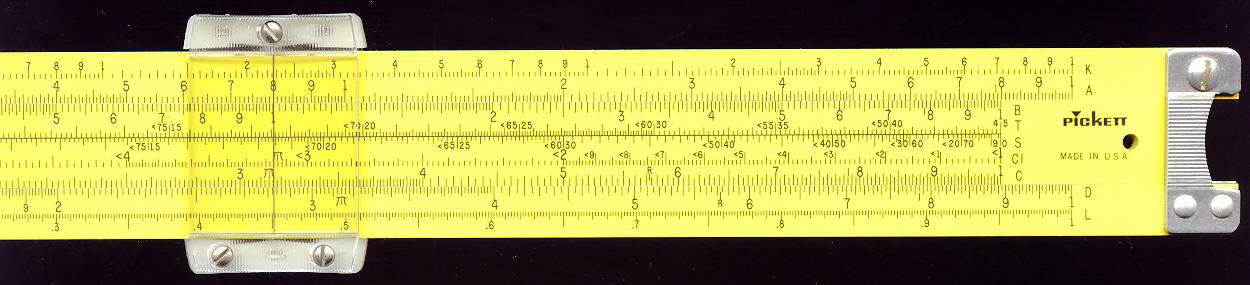

Front Right

Back Left

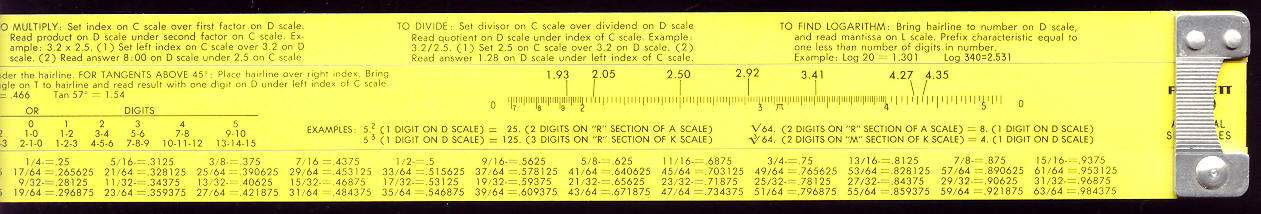

Back Right


Pickett N902-ES Simplex Trig - Notes



  1. Simplex Trig rule with instructions on the back for multiplication, division, logarithms, sine, and tangent with examples.
  2. This is the Eye Saver yellow model, refer to Pickett N902-T for the traditional white model.


Details



Further details about this Slide Rule:

Brand Pickett
Model N902-ES Simplex Trig
Country of Manufacture USA
Scales Front K, A [B, T, S, CI, C] D, L
Scales Back Instructions
Number of Scales 9
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front
Scale Length 25 cm
Length 31 cm
Width 3.3 cm
Condition Good, no marks or wear evident
Documentation Pickett - Trig Rules
Accessories
  1. Original box
  2. Leather case
