Pickett Model 14 US Greg's Slide Rules
 Images

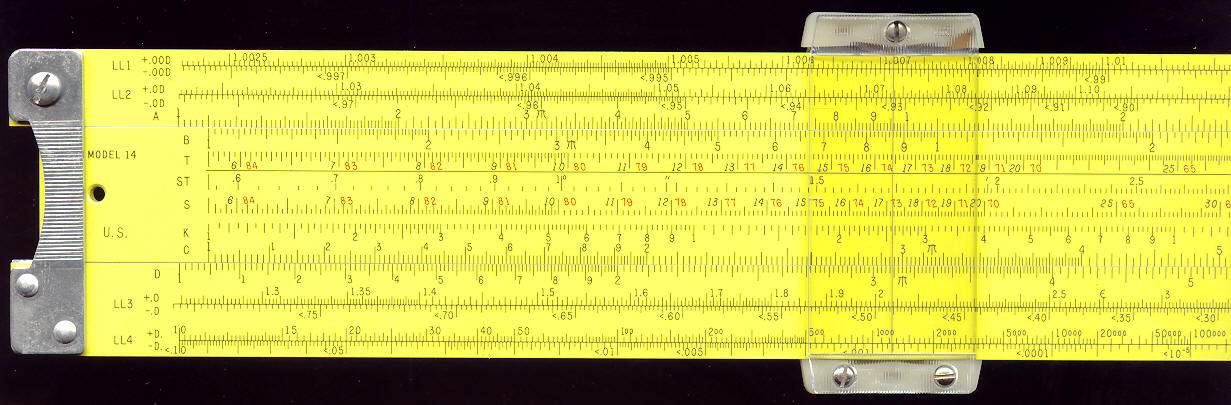

Front Left

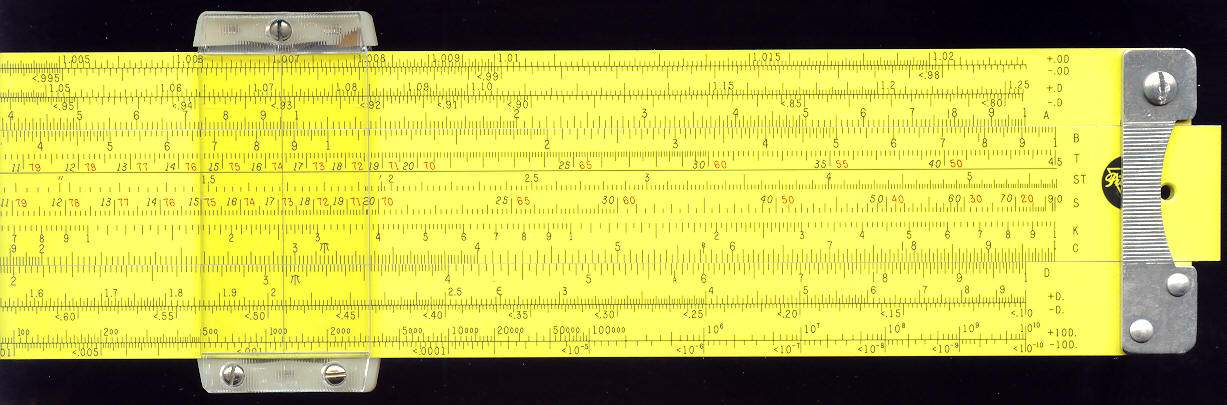

Front Right

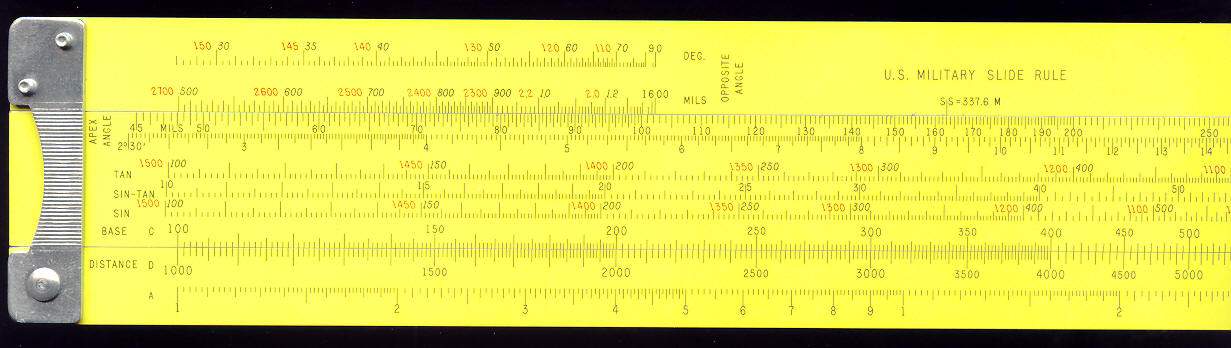

Back Left

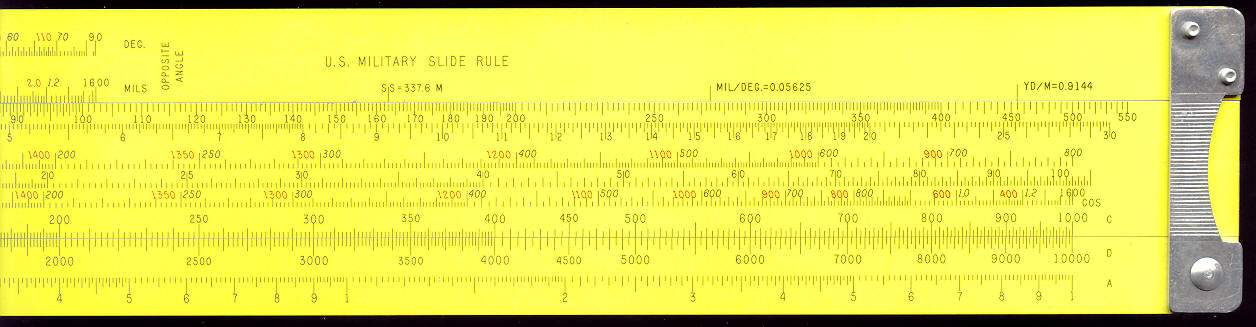

Back Right

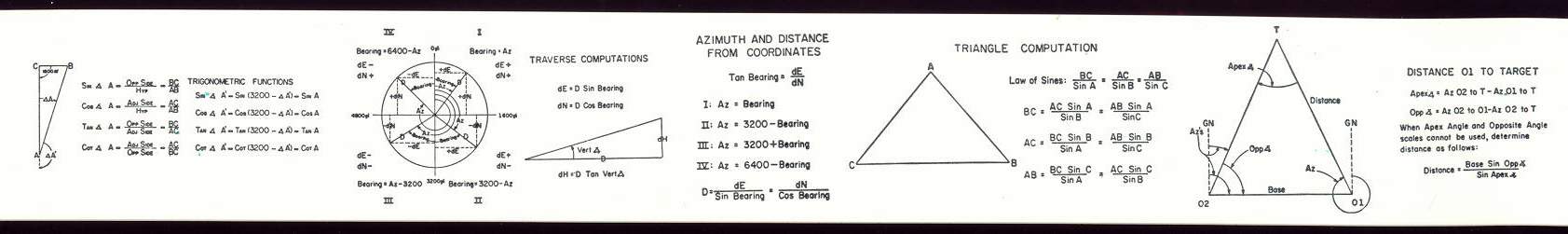

Instruction slip

Pickett Model 14 US - Notes



  1. Made by Pickett for use by US Army artillery units
  2. The front of this rule contains a variety of Log Log and Trig scales. The reverse contains a number of specialist for use in artillery plotting.
  3. The included plastic instruction slip contains a number of simple Trig instructions. The leather case has a special slot for storing the instructions.


Details



Further details about this Slide Rule:

Brand Pickett
Model Model 14 US Military Slide Rule
Country of Manufacture USA
Scales Front LL1, LL01, LL2, LL02, A [B, T, ST, S, K, C] D, LL3, LL03, LL4, LL04
Scales Back DEG, MILS [APEX, ANGLE, TAN, SIN-TAN, SIN, Base C] DISTANCE D, A
Number of Scales 26
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 5.2 cm
Condition Mint in Box.
Documentation This slide rule came with a general purpose Pickett manual on using dual base log log slide rules similar to this one which came with a N600-ES
Pickett - Dual Base Log Log Rules
Accessories
  1. Leather case
  2. Original box
  3. Plastic instruction slip


Last updated: 2002-08-03 09:10 AEST
