Keuffel & Esser 4161-1 Greg's Slide Rules
 Images

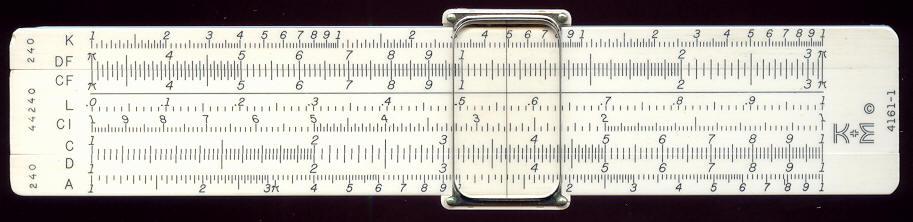

Front

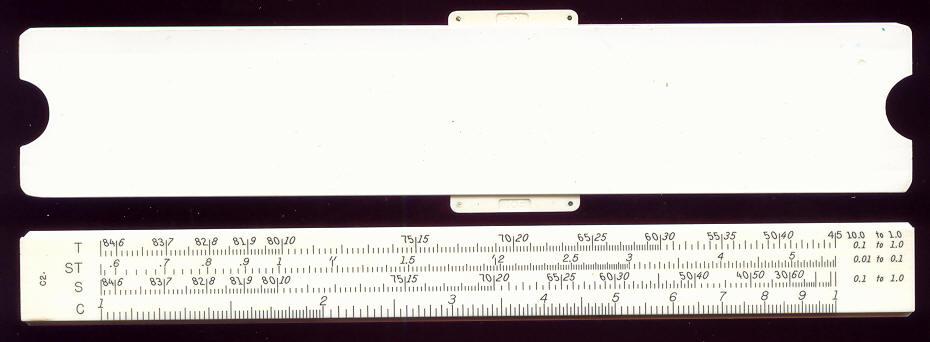

Back


Keuffel & Esser 4161-1 - Notes



This is a small simple pocket rule made by Keuffel and Esser. The leather slip case has an advertising logo on it so this cheaper type of rule may have been made mainly for trade or advertising give aways.

There are Trig scales on the back of the scale but no cursor window on the back of the rule so to use these the user would have had to reverse the slide and use the C scale on that side.


Details



Further details about this Slide Rule:

Brand Keuffel & Esser
Model 4161-1
Country of Manufacture USA
Scales Front K, DF [CF, L, CI, C] D, A
Scales Back [T, ST, S, C]
Number of Scales 12
Slide Rule Materials Plastic
Cursor Materials Metal/Plastic
Cursor Lines 1 Front
Scale Length 12.5 cm
Length 15.1 cm
Width 2.8 cm
Condition Good
Documentation None
Accessories Leather slip case


Last updated: 2002-08-18 15:40 AEST
