Post 1462 (1) Greg's Slide Rules
 Images

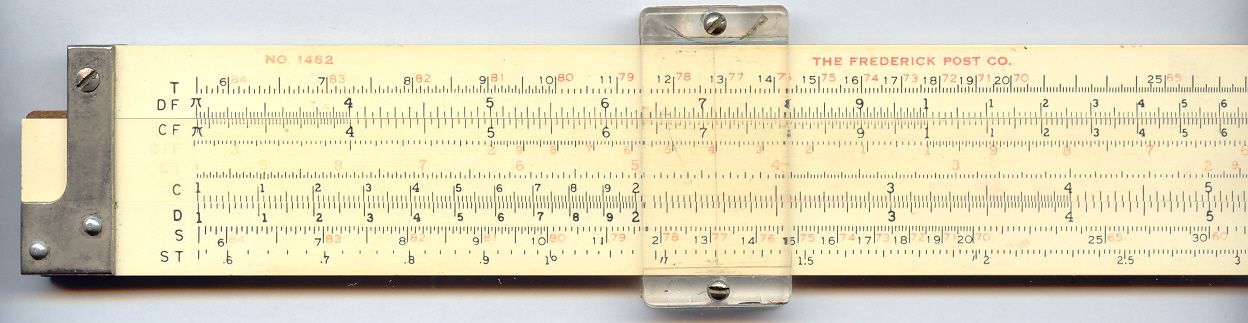

Front Left

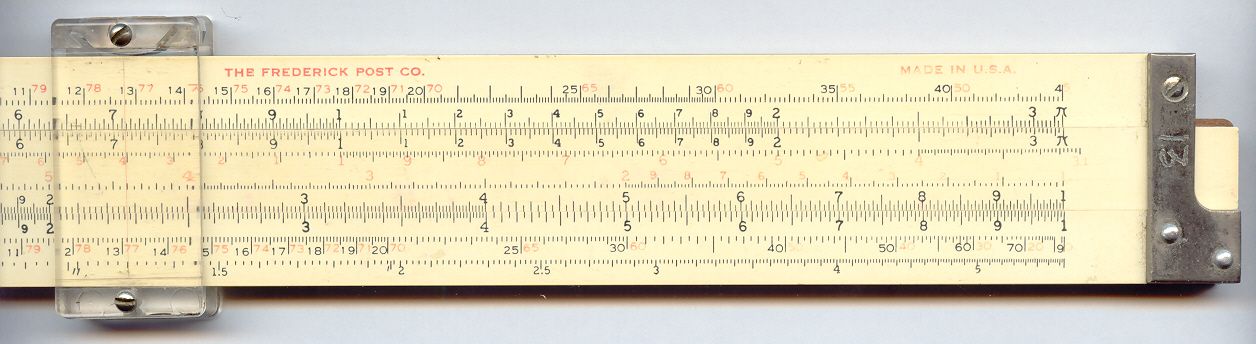

Front Right

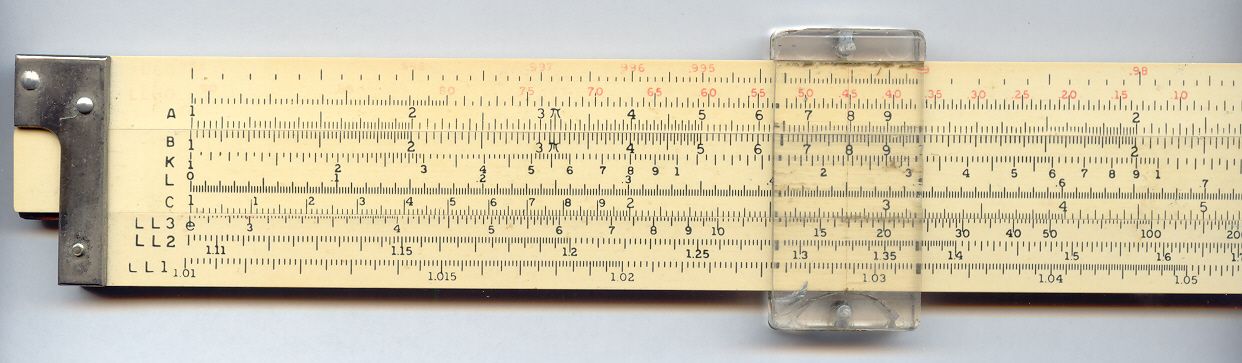

Back Left

Back Right


Post 1462 (1) - Notes



  1. Made by Charvos-Roos during World War 2.
  2. Made with either cream plastic or metal end pieces.
  3. This example has metal end pieces, refer to Post 1462 (2) for a version of this slide rule with cream plastic end pieces.


Details



Further details about this Slide Rule:

Brand Post
Model 1462 Power Trig
Country of Manufacture USA
Date of Manufacture Sometime during WW2
Scales Front T, DF [CF, CIF, CI, C] D, S, ST
Scales Back LL0, LL00, A [B, K, L, C] LL3, LL2, LL1
Number of Scales 19
Slide Rule Materials Wood/Celluloid
Cursor Materials Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 31 cm
Width 3.9 cm
Condition Fair, Red printing is fading, Cursor spring is weak, engraving to metal end piece on right front.
Documentation None
Accessories None


Last updated: 2002-09-01 22:00 AEST
