Pickett Deci-Point Greg's Slide Rules
 Images

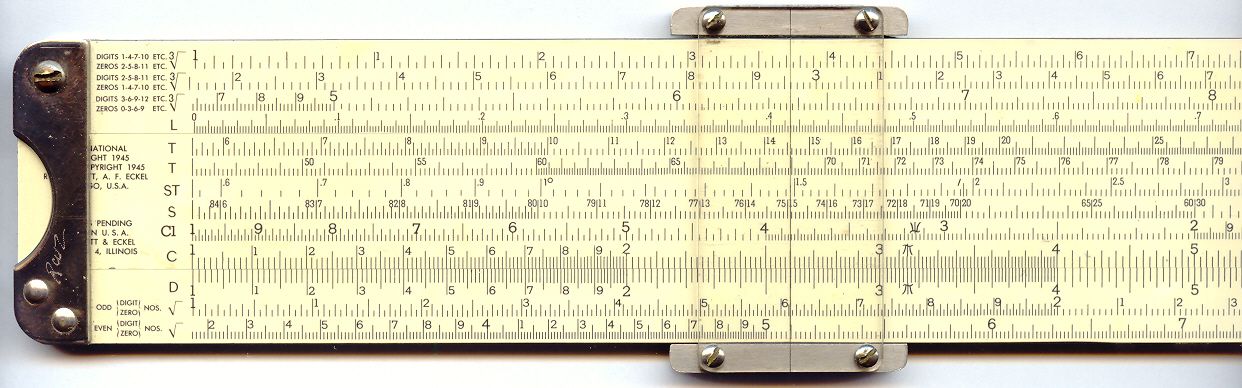

Front Left

Front Right

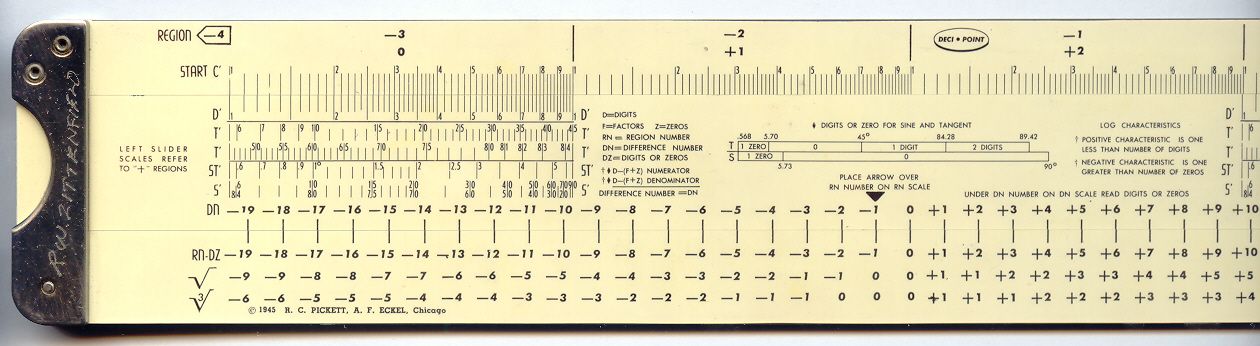

Back Left

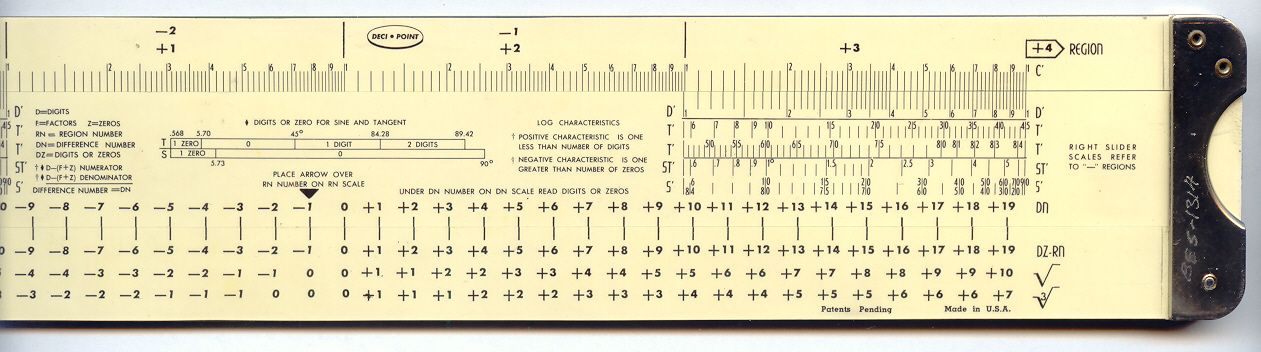

Back Right


Pickett Deci-Point - Notes



  1. This was the first rule from Pickett and was produced in 1945, it has been called the Model 1 by some users.
  2. This rule has a number of special scales on the reverse which are used for calculating the decimal point.


Details



Further details about this Slide Rule:

Brand Pickett
Model Deci-Point
Country of Manufacture USA
Scales Front 3√1, 3√2, 3√3, L [T, T, ST, S, CI, C] D, √1, √2
Scales Back Special [D, T, T, ST, S, Special] Special
Number of Scales 18
Slide Rule Materials Magnesium
Cursor Materials Metal/Plastic
Cursor Lines 1 Front, 1 Rear
Scale Length 24.7 cm
Length 30.7 cm
Width 5.2 cm
Condition Good
Documentation None
Accessories Rubber case. Original box


Last updated: 2004-08-22 23:30 AEST
