Keuffel & Esser N9081-3 Doric Greg's Slide Rules
 Images

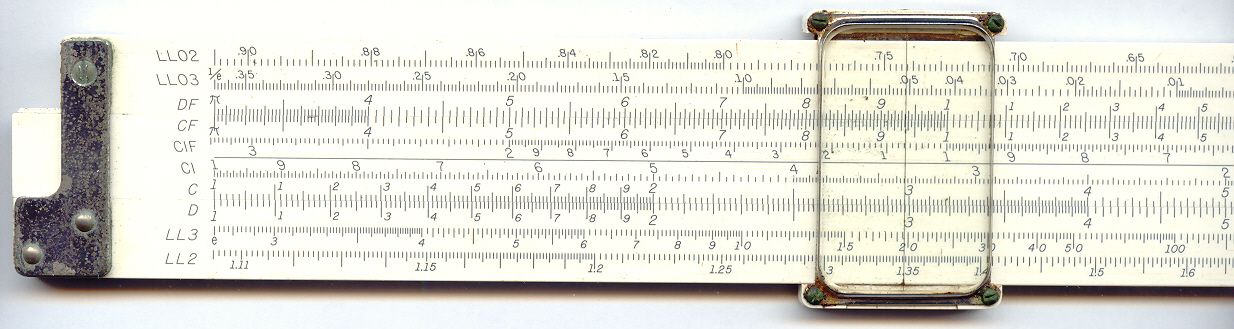

Front Left

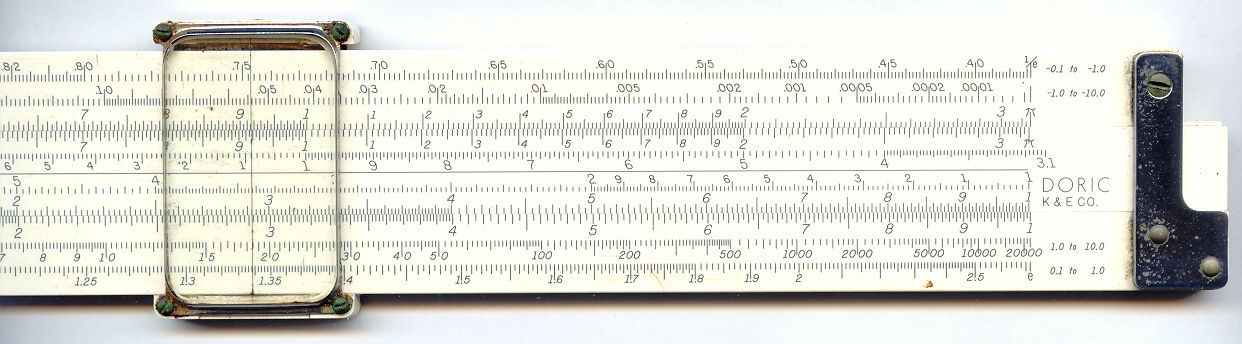

Front Right

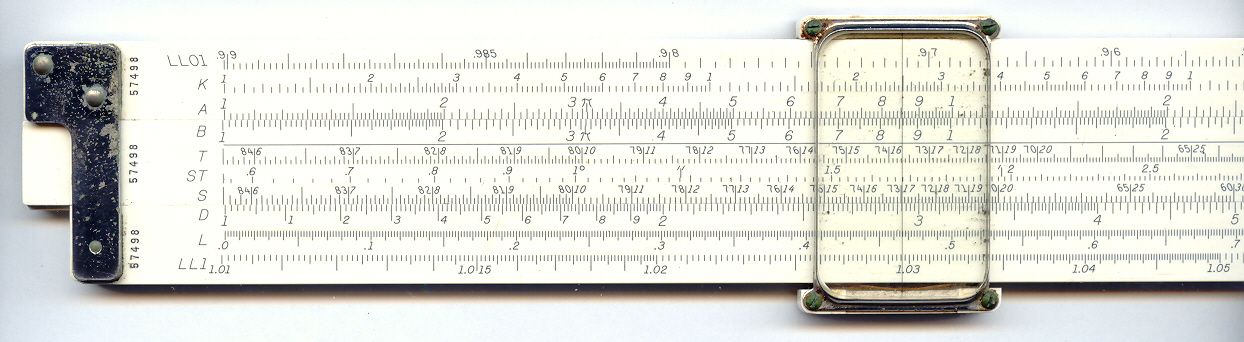

Back Left

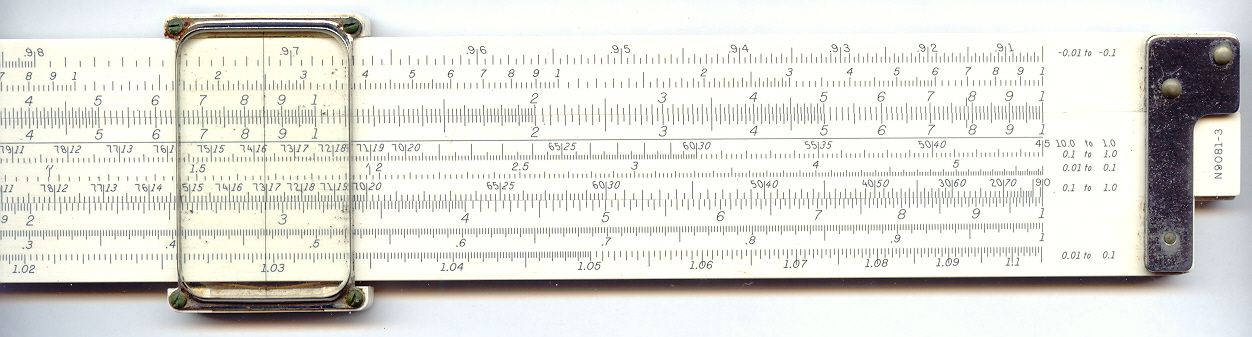

Back Right


Keuffel & Esser N9081-3 Doric - Notes



  1. This rule is part of the Log Log Duplex Decitrig family of rules.
  2. The scale configuration on this rule was introduced in the 1949 catalog and was no longer listed by 1955.
  3. For a "plastic" rule this model has a wonderful feel, not quite as heavy as the equivalent 4081-3 it still seems to feel more solid than other plastic type rules.


Details



Further details about this Slide Rule:

Brand Keuffel & Esser
Model N9081-3 Doric
Country of Manufacture USA
Scales Front LL02, LL03, DF [CF, CIF, CI, C] D, LL3, LL2
Scales Back LL01, K, A [B, T, ST, S] D, L, LL1
Number of Scales 21
Slide Rule Materials Ivorite
Cursor Materials Nylon/Metal/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 31.7 cm
Width 4.1 cm
Condition Fair, some corrosion on metal end pieces.
Documentation None
Accessories Composite and leather case


Last updated: 2002-09-18 22:00 AEST
