Relay 150 Greg's Slide Rules
 Images

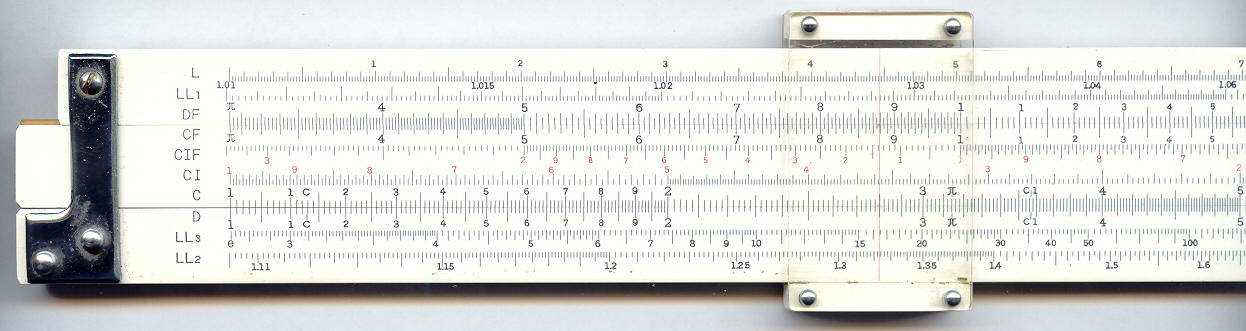

Front Left

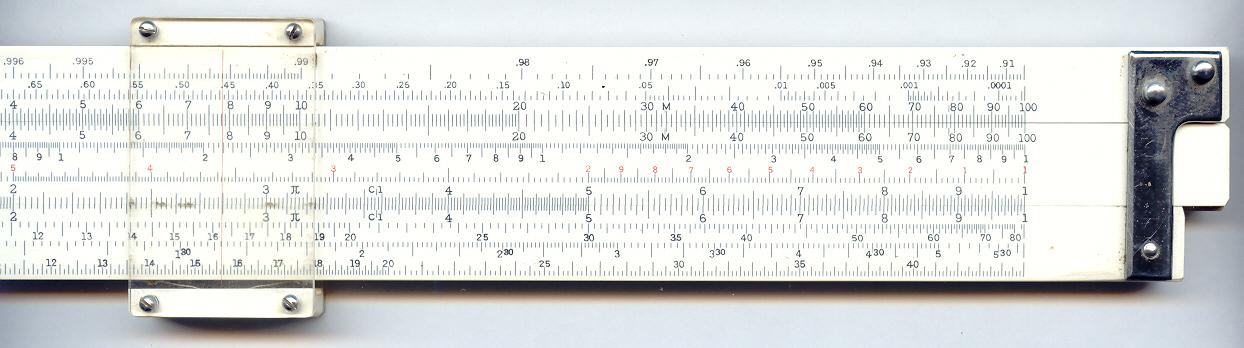

Front Right

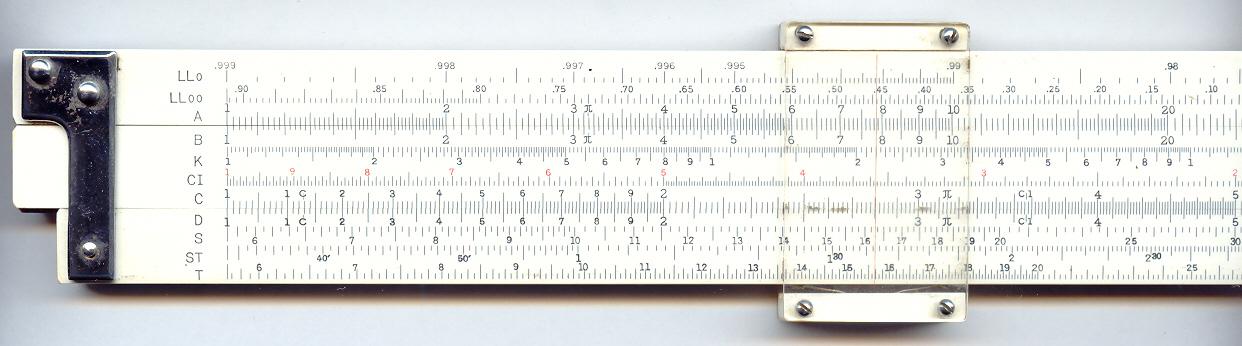

Back Left

Back Right


Relay 150 - Notes



  1. Relay Log Log engineering rule.


Details



Further details about this Slide Rule:

Brand Relay
Model 150
Country of Manufacture Japan
Scales Front L, LL1, DF [CF, CIF, CI, C] D, LL3, LL2
Scales Back LL0, LL00, A [B, K, CI, C] D, S, ST, T
Number of Scales 21
Slide Rule Materials Bamboo/Celluloid
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 32.2 cm
Width 4 cm
Condition Good
Documentation None
Accessories Leather case


Last updated: 2002-10-12 22:00 AEST
