Pickett N600-T - Notes
|
|
|
|
- Very compact rule requiring good eyesight (or reading glasses).
- This is the traditional white version of this rule, For examples of the eye saver yellow versions of this rule refer
to Pickett N600-ES (1) and
Pickett N600-ES (2).
|
|
|
|
|
|
Details
|
|
|
|
Further details about this Slide Rule:
| Brand |
Pickett |
| Model |
N600-T Dual Base Log Log Speed Rule |
| Country of Manufacture |
USA |

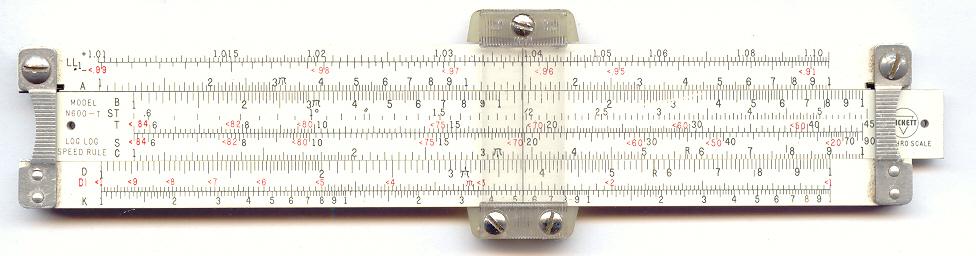

| Scales Front |
LL1, LL01, A [B, ST, T, S, C] D,
DI, K |

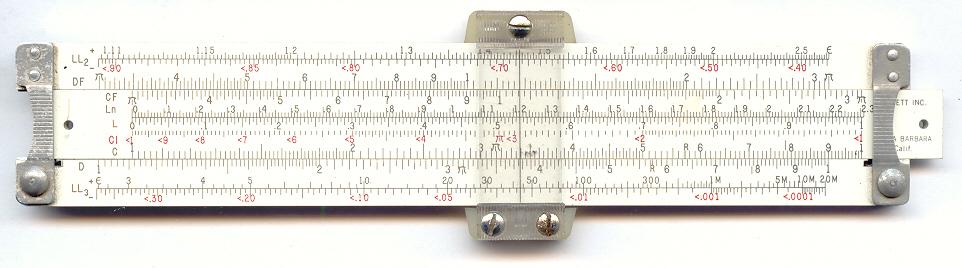

| Scales Back |
LL2, LL02, DF [CF, Ln, L, CI,
C] D, LL3, LL03 |
| Number of Scales |
22 |
| Slide Rule Materials |
Aluminium |
| Cursor Materials |
Nylon/Plastic with metal screws |
| Cursor Lines |
1 Front, 1 Back |
| Scale Length |
12.5 cm |
| Length |
15.5 cm |
| Width |
2.8 cm |
| Condition |
Good |
| Documentation |
This manual is from a
Pickett N600-ES (2).
 |
| Accessories |
Leather Pocket Case |
|
|
|
|
|
