Pickett 700 - Notes
|
|
|
|
- Also known as the US Air Force Aerial Photo Slide Rule Type A-2
- Another example of a specialist rule made to order by Pickett.
- This is the 5" version of this rule, for an example of the 10" version refer
to Pickett 520-T.
|
|
|
|
|
|
Details
|
|
|
|
Further details about this Slide Rule:
| Brand |
Pickett |
| Model |
700 US Air Force Aerial Photo Slide Rule Type A-2 |
| Country of Manufacture |
USA |
| Scales Front |
L, A, DF [CF, CIF, T, S, C] D, DI, K |

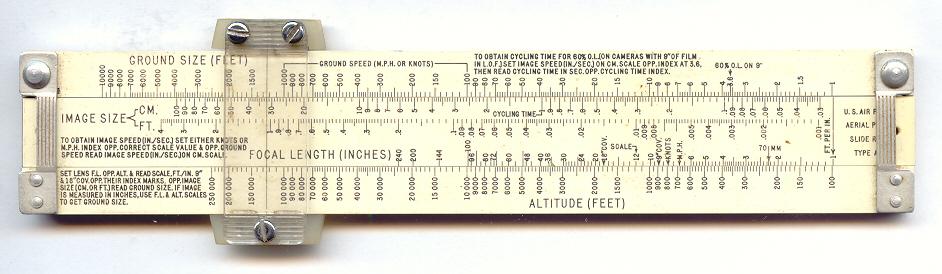

| Scales Back |
Ground Size, Ground Speed [Image Size Centimeter, Image Size Feet, Focal Length] Altitude |
| Number of Scales |
17 |
| Slide Rule Materials |
Aluminium |
| Cursor Materials |
Nylon/Plastic with metal screws |
| Cursor Lines |
1 Front, 1 Back |
| Scale Length |
12.5 cm |
| Length |
15.3 cm |
| Width |
2.8 cm |
| Condition |
Good |
| Documentation |
None |
| Accessories |
Leather Pocket Case |
|
|
|
|
|
