Pickett N1006-T - Notes
|
|
|
|
- Pickett 5" Trigonometry Rule.
- This is the traditional white version of this rule, For an example of the "Eye Saver" yellow version refer
to Pickett N1006-ES.
|
|
|
|
|
|
Details
|
|
|
|
Further details about this Slide Rule:
| Brand |
Pickett |
| Model |
N1006-T Trig |
| Country of Manufacture |
USA |

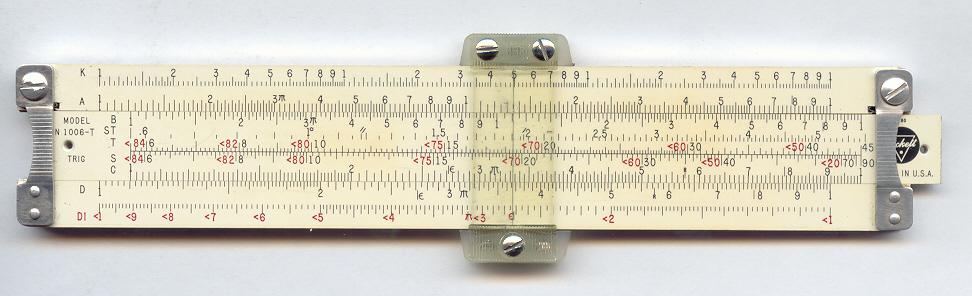

| Scales Front |
K, A [B, ST, T, S, C] D, DI |

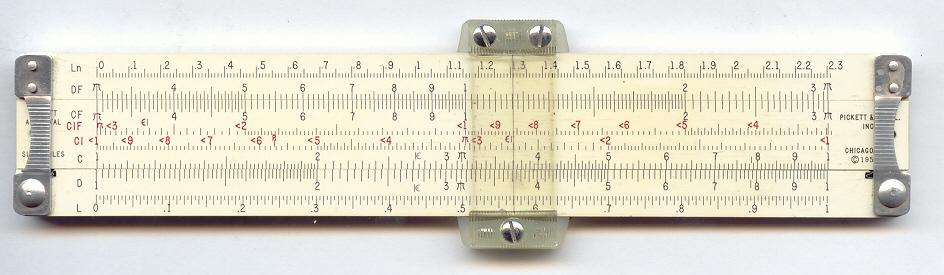

| Scales Back |
Ln, DF [CF, CIF, CI, C] D, L |
| Number of Scales |
17 |
| Slide Rule Materials |
Aluminium |
| Cursor Materials |
Nylon/Plastic with metal screws |
| Cursor Lines |
1 Front, 1 Back |
| Scale Length |
12.5 cm |
| Length |
15.3 cm |
| Width |
2.8 cm |
| Condition |
Good |
| Documentation |
None |
| Accessories |
Leather Pocket Case |
|
|
|
|
|
