Pickett N904-ES Greg's Slide Rules
 Images

Front

Front

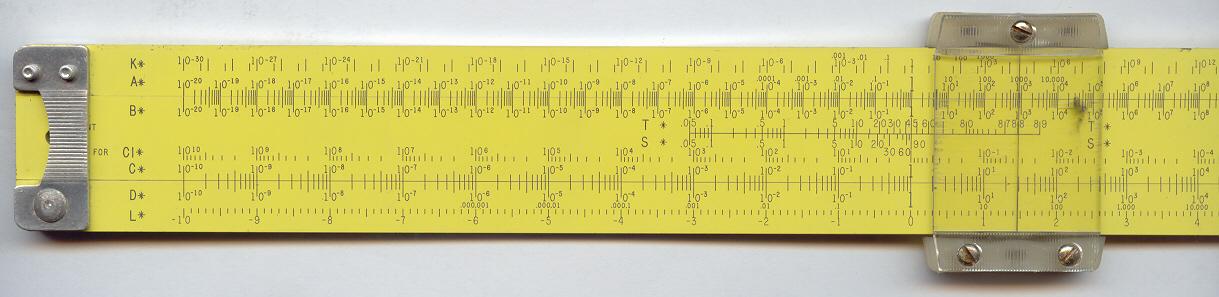

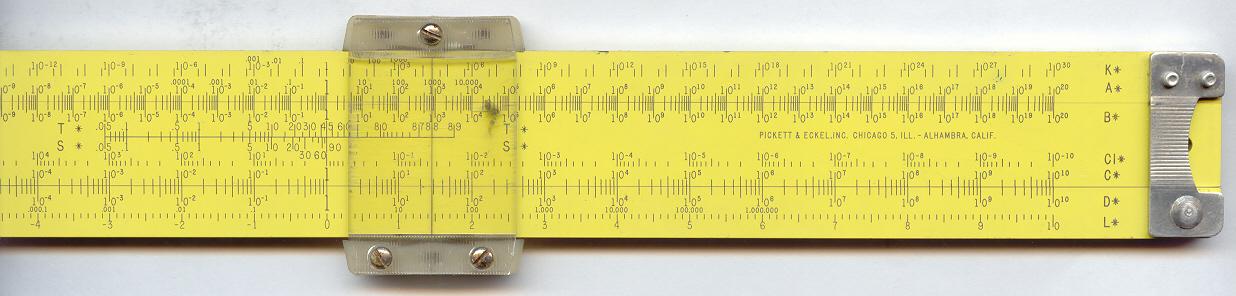

Back

Back


Pickett N904-ES - Notes



  1. The front of this rule has a standard set of trigonometry scales, the reverse has the same scales with positions for decimal location with up to 40 orders of magnitude (depending on the scale). A copy of the manual for this rule is available on the Documentation Download Page.


Details



Further details about this Slide Rule:

Brand Pickett
Model N904-ES Trig and Decimal Keeper Speed Rule
Country of Manufacture USA
Scales Front K, A [B, T, S, CI, C] D, L
Scales Back K*, A* [B*, CI*, C*] D*, L*
Number of Scales 16
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 30.7 cm
Width 3.2 cm
Condition Good
Documentation None
Accessories Vinyl Slip Case


Last updated: 2002-11-16 22:00 AEST
