Pickett N16-ES ELECTRONIC Log Log Dual Base Speed Rule Greg's Slide Rules
 Images

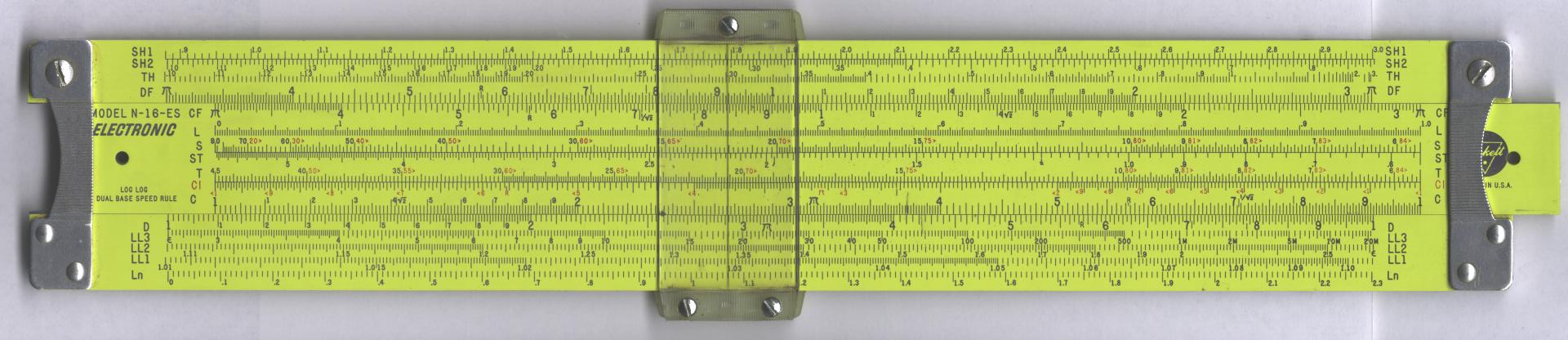

Front

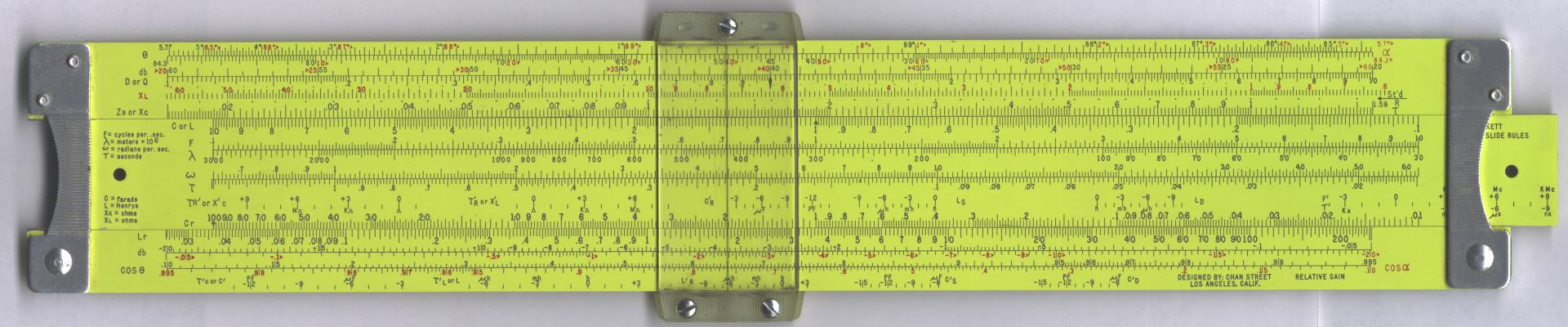

Back

Left Detail


Pickett N16-ES ELECTRONIC Log Log Dual Base Speed Rule - Notes



  1. A complex and unusual rule. This was s specialist electronics rule designed by Chan Street for Pickett.
  2. The front side of the rule has most of the critical scales from the Log Log Dual Base Speed Rule set however there were some changes to some scale arrangements to suite some typical calculations used by the electronics engineer.
  3. The scales on the back of the rule are designed for electronics type calculations with many of the scales referring to four of the central scales which are based on time variable functions. For a detailed explanation of these scales refer to the manuals available on the Documentation Download Page.

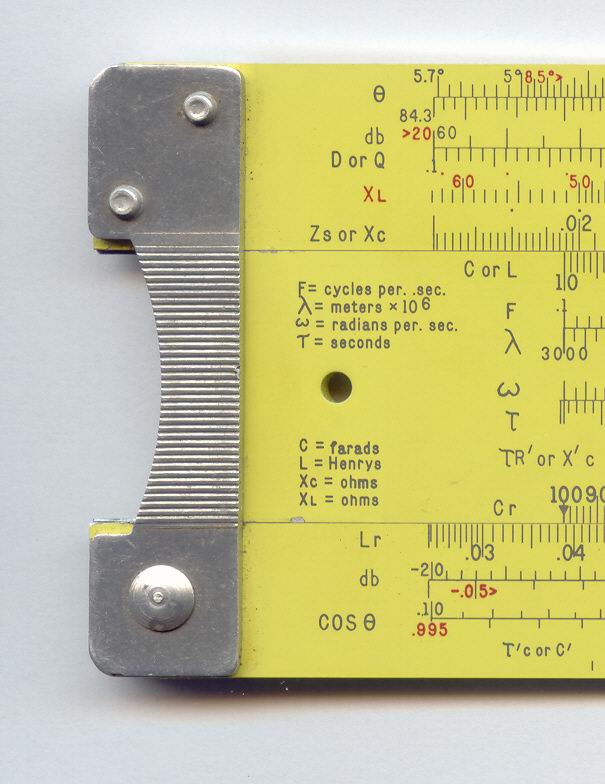

  4. For a more detailed image of the scales on the back and the accompanying legend refer to the large image to the left.


Details



Further details about this Slide Rule:

Brand Pickett
Model N16-ES ELECTRONIC Log Log Dual Base Speed Rule
Country of Manufacture USA
Scales Front SH1, SH2, TH, DF [CF, L, S, ST, T, CI, C] D, LL3, LL2, LL1, Ln
Scales Back Θ, db, D or Q, XL, Zs or Xc [C or L, F, λ, ω, τ, τR' or X'c, Cr] Lr, db, COS Θ, τ'c or C'
Number of Scales 32
Slide Rule Materials Aluminium
Cursor Materials Metal/Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 30.7 cm
Width 5.2 cm
Condition Good
Documentation None
Accessories Leather case
