Aristo Multi-Log 0970 Greg's Slide Rules
 Images

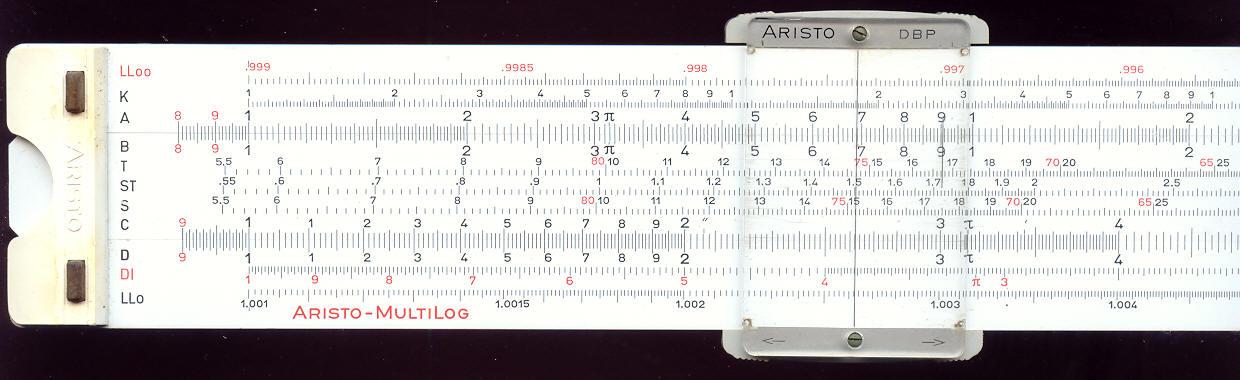

Front Left

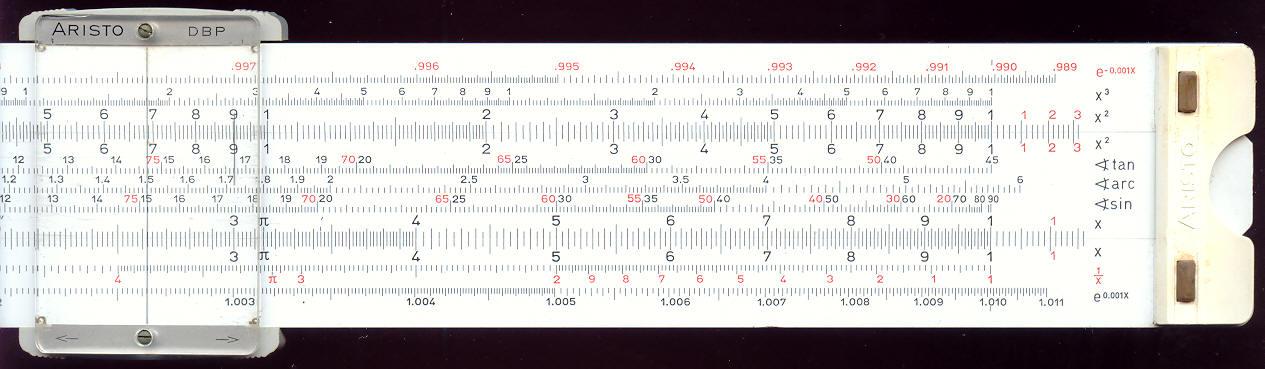

Front Right

Back Left

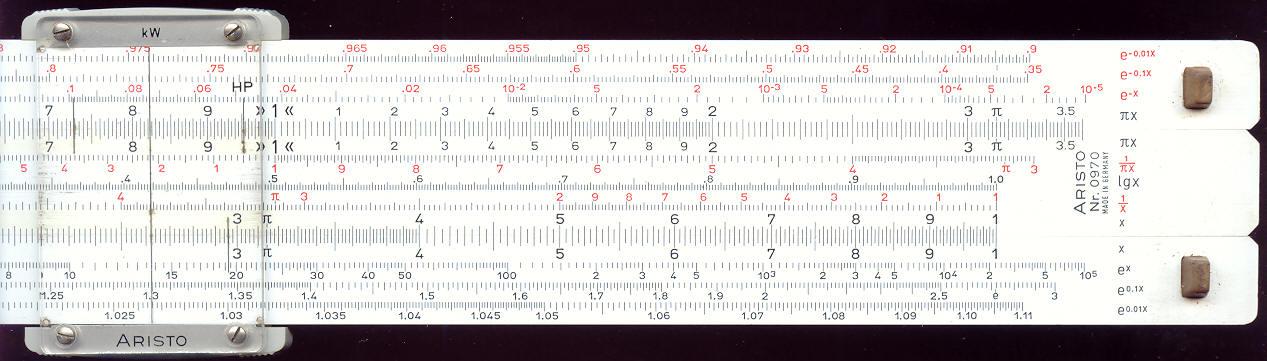

Back Right


Aristo Multi-Log 0970 - Notes



  1. This rule is an example of a high end Aristo Log Log engineering rule.
  2. The rule is marked with the Charvoz symbol. This company was importing and selling Aristo rules in the USA.
An explanation of the manufacturing codes listed on the sides of Aristo rules has been added as a sidebar.


Details



Further details about this Slide Rule:

Brand Aristo
Model Multi-Log 0970
Country of Manufacture Germany
Date of Manufacture 1969
Manufacturing Code 2FX16
Scales Front LL00, K, A [B, T, ST, S, C] D, DI, LL0
Scales Back LL01, LL02, LL03, DF [CF, CIF, L, CI, C] D, LL3, LL2, LL1
Number of Scales 24
Slide Rule Materials Plastic
Cursor Materials Plastic - Magnifying
Cursor Lines 2 Front, 4 Back (marks for KW & HP)
Scale Length 27.7 cm
Length 33.7 cm
Width 4.8 cm
Condition Good
Documentation None
Accessories Leather Case


Last updated: 2002-08-14 20:30 AEST
