Pickett 800-T (2) Greg's Slide Rules
 Images

Front Left

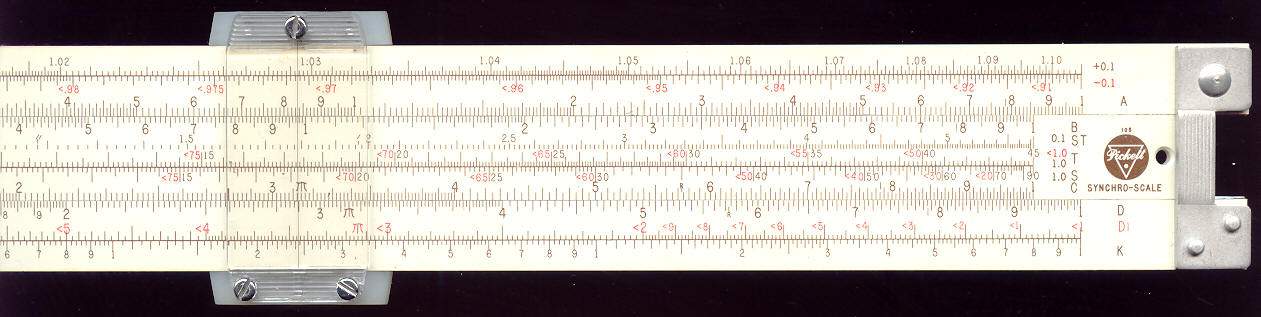

Front Right

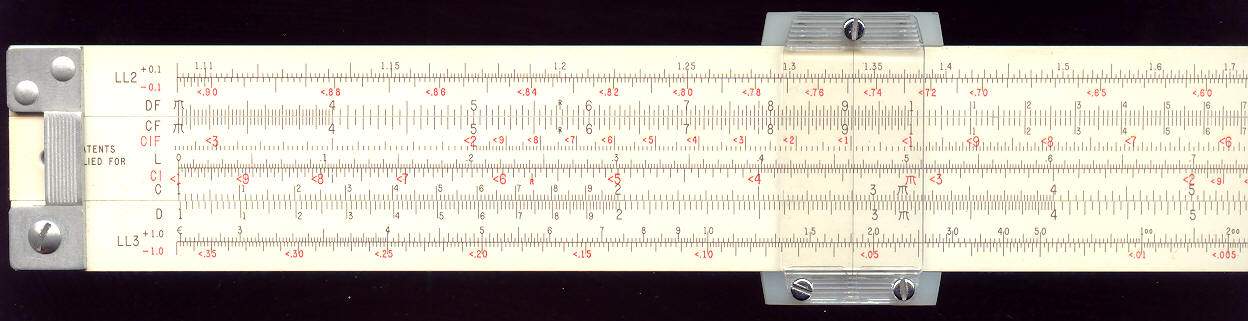

Back Left

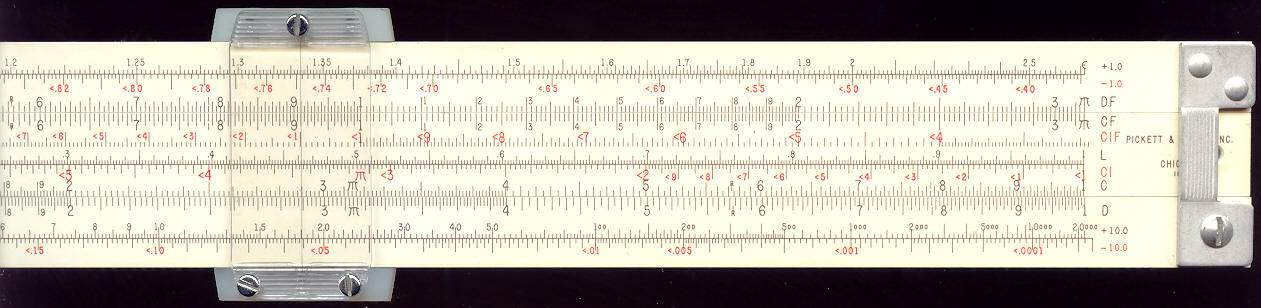

Back Right


Pickett 800-T (2) - Notes



  1. Exponential log-log rule.
  2. This is a late model 800-T before the N prefixes were added to the model number. In all respects however this is identical to the N800-T as it has the nylon cursor blocks as well as the square end pieces.
  3. For additional versions of this model refer to Pickett 800 and Pickett 800-T (1)


Details



Further details about this Slide Rule:

Brand Pickett
Model 800-T LOG LOG, Speed Rule
Country of Manufacture USA
Scales Front LL1, LL01, A [B, ST, T, S, C] D, DI, K
Scales Back LL2, LL02, DF [CF, CIF, L, CI, C] D, LL3, LL03
Number of Scales 22
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories
  1. Leather case with belt loop
  2. Original box


Last updated: 2002-12-01 12:00 AEST
