Pickett 800-T (1) Log Log Greg's Slide Rules
 Images

Front

Front

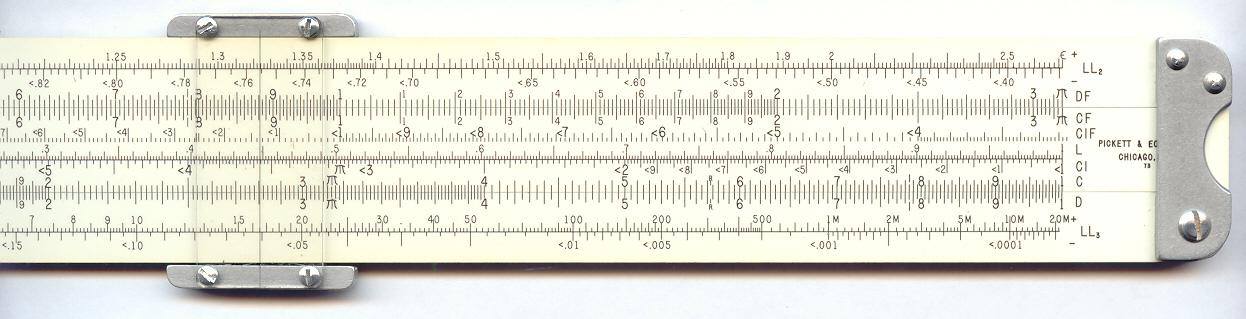

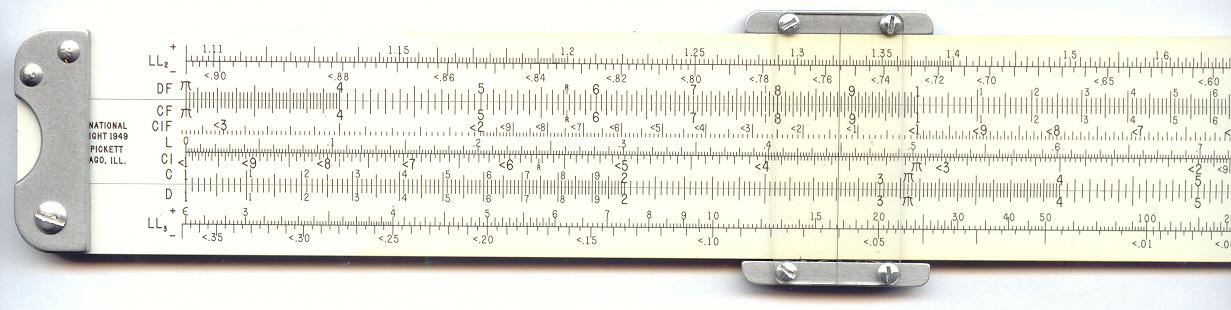

Back

Back


Pickett 800-T (1) Log Log - Notes



  1. This is an old style Model 800-T Log Log.
  2. There are a number of versions of this rule made by Pickett over their history yet the basic format of this rule seems to remain constant.
  3. Constructed of Aluminium this rule is approx 2.5mm thick. Compare this to the earlier version of this rule the Pickett 800 which is identical except it is based on a 4mm thick body which makes it heavier and very satisfying to hold. A later version of this rule with the same model number is at Pickett 800-T (2), this rule has the new style cursor and end pieces yet is marked as an 800-T not N800-T as later versions were marked.


Details



Further details about this Slide Rule:

Brand Pickett
Model 800-T Log Log
Country of Manufacture USA
Scales Front LL1, LL01, A [B, ST, T, S, C] D, DI, K
Scales Back LL2, LL02, DF [CF, CIF, L, CI, C] D, LL3, LL03
Number of Scales 22
Slide Rule Materials Aluminium
Cursor Materials Metal/Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories Leather case


Last updated: 2002-12-01 12:00 AEST
