Pickett 800 Log Log Greg's Slide Rules
 Images

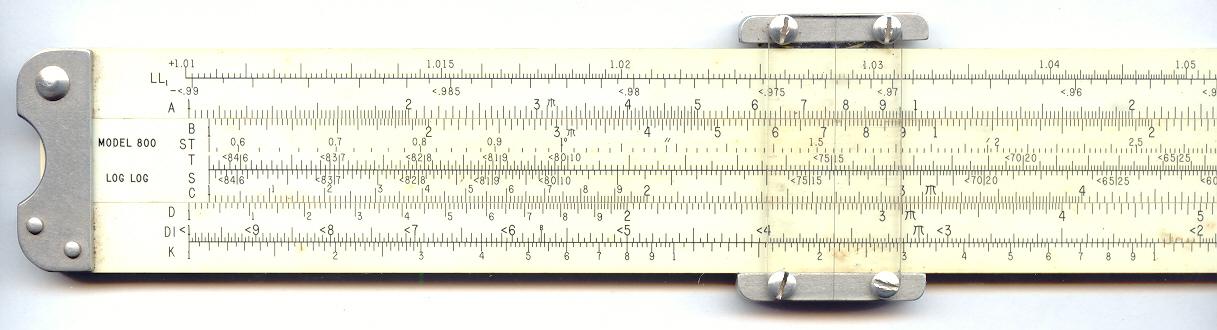

Front

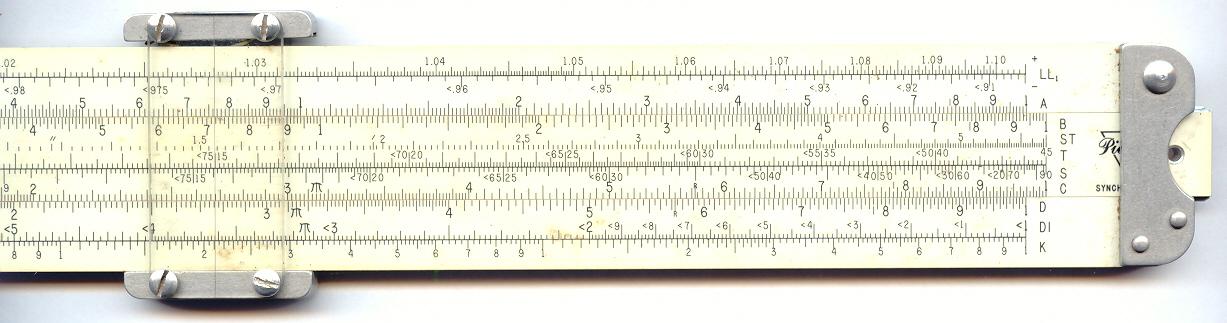

Front

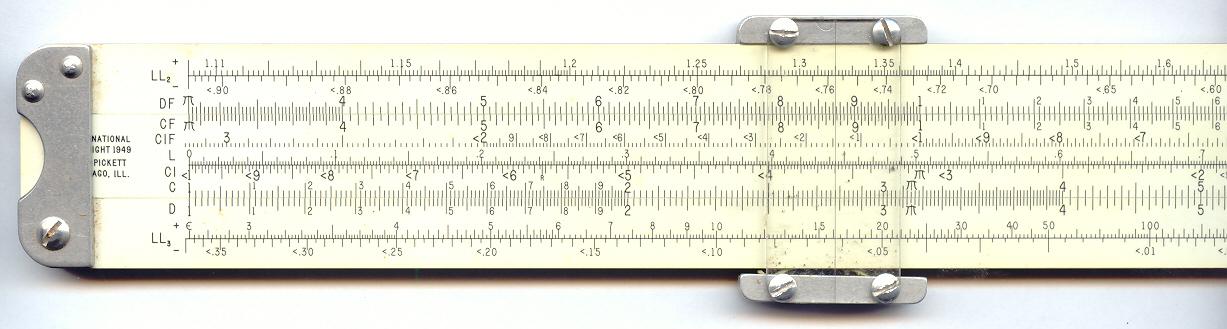

Back

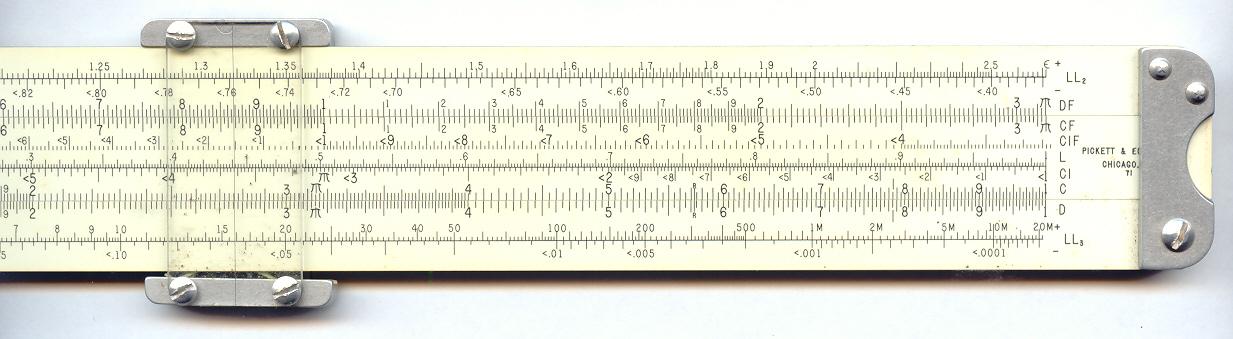

Back


Pickett 800 Log Log - Notes



  1. This is an old style Model 800 Log Log.
  2. There are a number of versions of this rule made by Pickett over their history yet the basic format of this rule seems to remain constant.
  3. Constructed of Aluminium this rule is approx 4mm thick and is quite a solid rule, Later Picketts in the 800 series are not quite this solid. Refer to Pickett 800-T (1) and this later Pickett 800-T (2)


Details



Further details about this Slide Rule:

Brand Pickett
Model 800 Log Log
Country of Manufacture USA
Scales Front LL1, LL01, A [B, ST, T, S, C] D, DI, K
Scales Back LL2, LL02, DF [CF, CIF, L, CI, C] D, LL3, LL03
Number of Scales 22
Slide Rule Materials Aluminium
Cursor Materials Metal/Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories Leather case


Last updated: 2002-12-01 12:00 AEST
